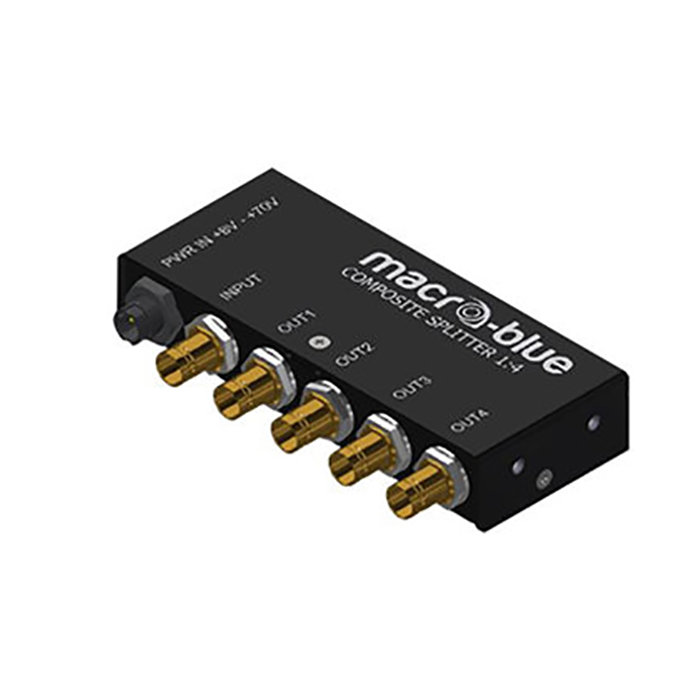

Picture of product MB-CVS421

Part #: MB-CVS421

NSN:

5836-01-686-1643

OEM:

Macro-Blue

Desc:

Analog Video Distribution Amplifier

Part Number :



MB-CVS421


FEATURES
  •  MB-CVS421 is a 1 x 4, high-performance composite video amplifier designed for distributing composite video signals to multiple destinations
  • Composite video input is connected via a high-quality BNC connector
  • Re-clocks and re-conditions the signal prior to distributing the composite signal output through up to 4 ports simultaneously
  • The MB-CVS421 consumes a fraction of the energy compared to typical consumer and broadcast units
  • Power draw is less than 350mW and less than 12mA @ 28V
  • It can be powered by any DC power source ranging from 8 volts all the way up to 70 volts
  • Designed specifically for aviation environments, the MB-CVS421 is constructed using a lightweight, powder-coated aluminum enclosure
  • All materials, including the BNC connectors, are compliant and pass UL-94V0 meeting FAA flammability requirements
  • The MB-CVS421 is designed to DO-160G standards and is covered under a 3 year limited, Standard Warranty



SPECIFICATIONS

DIMENSIONS: 5.035" x 2.150" x 0.950" wEIGHT: 6.4 oz., with supplies brackets and hardware 7.2 oz.
mb-cvs421: 1 x 4 Composite video distribution amplifier that accepts one composite video signal on a high-quality BNC connector and outputs 4 composite video signals. Designed to DO-160 standards.  intput: 1 Composite Video, 1Vpp typical, 2.3Vpp max AC Coupled with Sync Tip Clamp Compatible with negative synch signal Compatible with +/- biased signal 75-ohm impedance and termination BNC high-quality gold-plated edge mount
output: 4 high-quality BNC gold plated edge mount connectors 1Vpp typical, 2.3Vpp max All outputs fully buffered 75ohm impedance Output current 75mA each filters: Silicon-based low-pass filters, ideal for baseband analog video, such as RS170 composite, NTSC or PAL. 6th-Order 9.5 Mhz –2dB Butterworth -1dB Passband Bandwidth at 8.2 Mhz 54dB Attenuation at 27Mhz (Upon Request can optionally be configured for pass-through, 150Mhz –3dB Bandwidth operation)
operating temerature: -40°C (-40°F) to +85°C (+185°F) STORAGE TEMPERATURE: -60°C (-76°F) to +150°C to (+302°F)
SIGNAL TO NOISE RATIO: 78dB POWER SURGE: Up To 80V per DO-160 and 600V Spike per DO-160
POWER CONSUMPTION: Less than 350mW, less than 12mA @ 28V POWER INPUT: 8 to 70V
other information: Active silicon-based signal re-drivers and conditioning DIFFERENTIAL PHASE: 0.3°
DIFFERENTIAL GAIN: 0.15% ESD W/ CONNECTORS ON 15kV HBM
ESD CONNECTOR OFF: 6kV HBM, 300V MM, 2kV CDM ENCLOSURE: Powder Coated 5052 Aircraft Aluminum





Part Number: Description:
MB-CVS421 Analog Video Distribution Amplifier




Serial # 390226
Condition NEW
Mods -
Tag Date 03/30/23
Shop Macro-Blue Inc.
Warranty 1 Year
Serial # 390227
Condition NEW
Mods -
Tag Date 03/30/23
Shop Macro-Blue Inc.
Warranty 1 Year
Serial # 390228
Condition NEW
Mods -
Tag Date 03/30/23
Shop Macro-Blue Inc.
Warranty 1 Year
Serial # 390229
Condition NEW
Mods -
Tag Date 03/30/23
Shop Macro-Blue Inc.
Warranty 1 Year
MB-CVS421
- Analog Video Distribution Amplifier

NSN: 5836-01-686-1643

Price Condition Status
$775.00 NEW OUTRIGHT 4 IN STOCK
