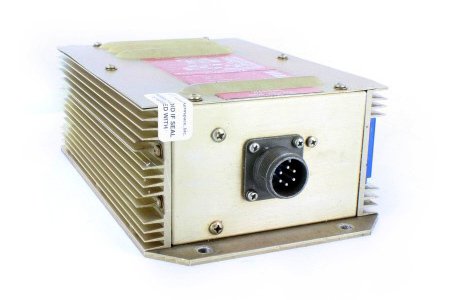

Picture of product PC-125
Part #: PC-125
Model: PC-125
Desc: Static Inverter
OEM: MarathonNorco
NSN: 8415-00-634-5278
Sched-B: 8504409570
ECCN: 3A999
Cage Code: 74025
Part Number :


PC-125
FEATURES
  • Converts DC electrical power from 20-37 VDC into regulated 400Hz monophase sine wave power
  • Remote On/Off
  • Same as PC-125A, but includes Remote On/Off
  • FAA TSO Approved
  • Lightweight
SPECIFICATIONS
Input Power: 28 VDC at 5.9 amps (nominal); 20-37VDC (total range) Output Current: 128 VA at 115VRMS with DC input voltage of 20-35 volts; 50VA at 26VRMS with DC input voltage of 20-35 volts
Output Voltage: 115V RMS +-3% at combination of 24-32V DC and 0-125% load Dimensions: 7"L x 5.1"W x 2.75"H



PC-125
- Static Inverter

NSN: 8415-00-634-5278

Price Condition Status
RFQ RFQ RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
