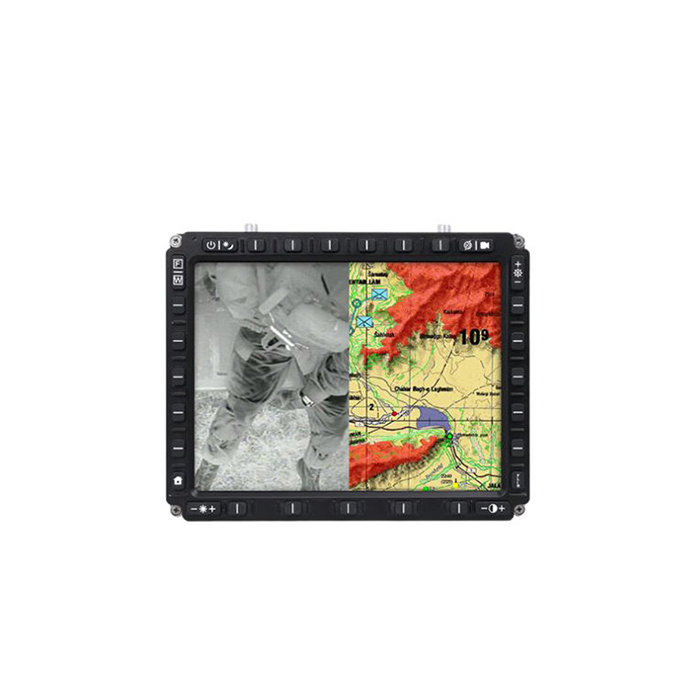

Picture of product AMD3104FT

Part #: AMD3104FT

OEM:

Mercury Systems

Desc:

SMFD - Smart Multifunction Display (10.5")

Part Number :

Mercury Systems



AMD3104FT

FEATURES
  • Engineered for all tactical aviation integration
  • The Avalex AMD3104FT is a sleek, smart multi-function display (SMFD) system made for modern missions
  • This lightweight, 10.4-inch touchscreen features 8GB RAM in its Intel i7 processor
  • GPS and multiple sensor and system inputs, all completely supported by the unit
  • Full-range sensor video systems are easily displayed on the AMD3104FT with its full 1080p60 input, as well as PAL and NTSC
  • Integrated with the Turrets and Helmet-Mounted Cueing Systems from FLIR, Wescam, Lexavia and Thales
  • A thin, lightweight SMFD, the AMD3104FT can be ideal for all tactical aircraft integration



SPECIFICATIONS

display area: 10.4" diagonal (264.2 mm.) height: 7.87" (199.9 mm.)
Weight: 7.1 lbs. (3.22 kg.) depth: 4.12”; 104.6 mm
width: 9.9" (251.5 mm) DIMMING: 28 VDC/ 5 VDC/ 5 VAC
 resolution: 1024 x 768 VGA STORAGE DEVICES: eSATA, USB Combo, Ethernet
storage temperature range: -55˚C to +85˚C operating temperature range: -40˚C to +55˚C
removeable storage: SD, SATA, USB, eSATA/USB Combo contrast ratio: 1000:1
power:  18-28 VDC high data rate gps: 1 SMA Connector
nvis: Class B RS-170 (SD VIDEO) 3 Input/1 Output
smpte: 2 Inputs processor graphics:  Intel® HD Graphics 5000
qualification: MIL-STD-810G Qualified, MIL-STD-461F Qualified, MIL-STD-704A/F CPU DETAILS: Intel Dual Core Processor, 8GB, RAM DDR3L
optional operating system: Windows 7, Linux, or Realtime OS internal memory: 60 GB mSATA
MIL-STD-1553: 2 ports USB: 2 Inputs
arinc 429: 2 TX; 2 RX rs-232/422: 2 Ports/ 2 ports
ARINC 825 (CANBUS): 2 ports ethernet 10/100/1000: 3 Ports
discrete: 4 Inputs / 2 Outputs refresh rate: 60 Hz
variants: AMD3104F Swing arm mount, AMD3104FT Panel Mount ACCESSORIES: ACC9110 Display Mount map Controller, ACC9220 Dzus mount map controller

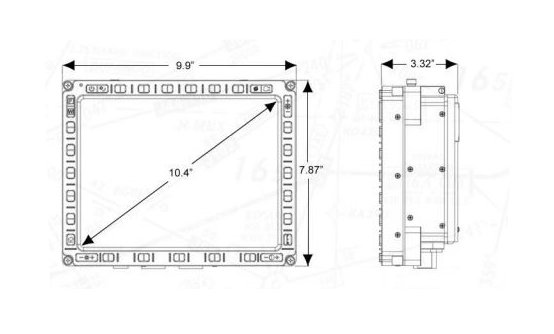

AMD310FT
Part Number: Description:
AMD3104FT SMFD - Smart Multifunction Display (10.5")



AMD3104FT
- SMFD - Smart Multifunction Display (10.5")
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
