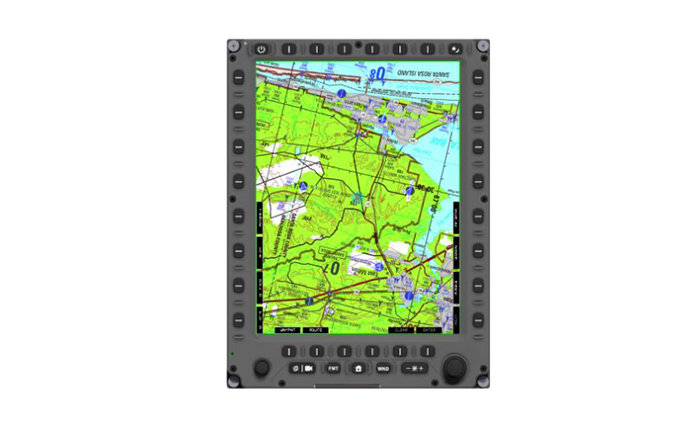

Picture of product AMD3121

Part #: AMD3121

OEM:

Mercury Systems

Desc:

SMFD - Smart Multi-Function Display (12")

Part Number :

Mercury Systems



AMD3121

FEATURES
• The AMD3121 is a rugged, field-proven portrait 12.1” SVGA smart multi-function display (SMFD)

• Full 1080p60 input–as well as PAL and NTSC–means the AMD3121 is compatible with the full range of sensor video systems
• AMD3121 may be provided with a fully integrated Harris FliteScene or Avalex digital map
• This is a thin, lightweight Smart Multi-Function Display, ideal for all tactical aircraft integration
• Smart Multi-Function Display (SMFD)
• 12.1” Portrait SVGA Display
• Intel 4th Generation i7 Processor, 8 GB Memory
• 1553, ARINC429, Gigabit Ether, Serial, Discretes and ARINC825/CAN bus
• Integrated High Data Rate GPS
• 2 HD and 3 SD Video Inputs
• 4 types of Removable Memory
• Button Bezel
• Concentric Knob / Track Stick
• Integrated Digital Map System Available
• Touch Screen
• Fully MIL-STD Qualified



SPECIFICATIONS

display area: Diagonal Display 12.1”; 307.3 mm height: 12.6”; 320 mm
Weight: 9.5 lbs; 4.3 kg depth: 4.12”; 104.6 mm
width: 9.5”; 241.3 mm colors: 16.7 M
 resolution: 600 x 800 luminance: 600 Nits
storage temperature range: -55˚C to +85˚C operating temperature range: -40˚C to +55˚C
removeable storage: SD, SATA, USB, eSATA/USB Combo backlighting: LED
power Input:  18-28 VDC viewing cone: Conica
nvis: Class A TOUCH SCREEN: PCAP
controls: Programmable Bezel Buttons , Dual Encoder knob and Concentric Knob/Joystick, Three Types of Dimming for Bezel and Display processor: i7 Intel® Core
qualification: MIL-STD-810G Qualified, MIL-STD-461F Qualified ram ddr3: 8 GB
optional operating system: Windows 7, Linux, or Realtime OS internal memory: 60 GB mSATA
rs-170: 3 Inputs hd-sdi: 2 Inputs
mil std 1553: 2 Ports canbus: 2 Ports
rs-232: 2 Ports arinc 429 2 Ports
high data rate gps: 1 SMA Connector Display: Sunlight Readable





Part Number: Description:
AMD3121 SMFD - Smart Multi-Function Display (12")



AMD3121
- SMFD - Smart Multi-Function Display (12")
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
