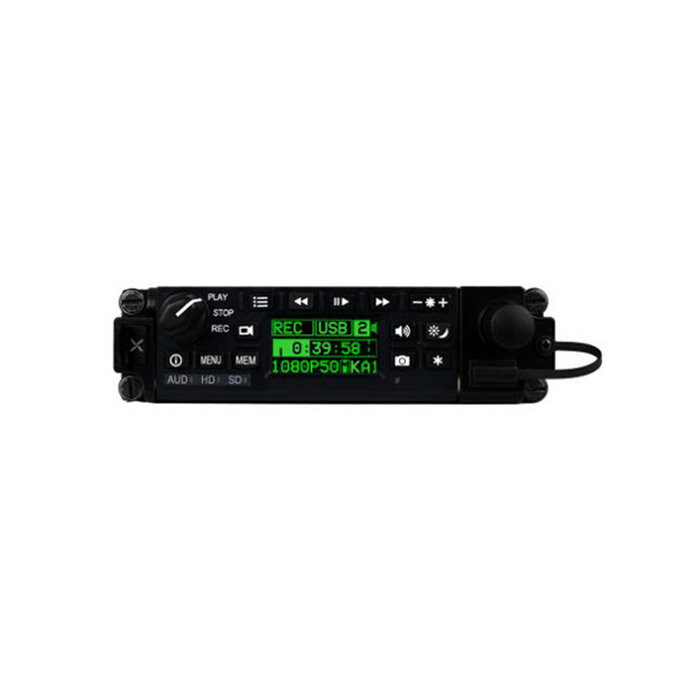

Picture of product AVR8411

Part #: AVR8411

OEM:

Mercury Systems

Desc:

Single Channel DVR

Part Number :

Mercury Systems



AVR8411

FEATURES
  • The AVR8411 is a 5th generation, single-channel digital video recorder in a compact Dzus-style housing
  • From 1080p60 to standard definition NTSC or PAL, the highly capable AVR8411 can record the wide range of signals required by ISR platforms
  • AVR8411 can record the wide range of signals required by ISR platforms
  • Advanced features available with the AVR841, are Event marking, KLV data, image snapshots, remote operation, playback and playback-while-recording
  • The AVR8414 can be controlled via the front panel of the DVR or via an on screen display
  • High resolution, NVIS compatible, graphical display used to provide a wide range of status information to the operator of the single-channel recorder
  • Avalex created an interface for the AVR8411 that allows operators to choose 1 or 4 selectable SD and 1 of 2 selectable HD video inputs


SPECIFICATIONS
SINGLE/MULTI CHANNEL RECORD: Single power: 28 VDC
display area: 1.54" diagonal (39.12 mm.) height: 1.5 in. (38.1 mm)
Weight: 1.4 lbs. (0.6 kg.) depth: 7.05" (179.07 mm.)
width: 5.75 in. (146.0 mm.) nvis: NVIS-A
MAXIMUM resolution: 1080p60 KLV METADATA: MISB, STANAG 4609
STORAGE TEMPERATURE RANGE: 55° to 85° F operating temperature range: -45°C to +71°C
SD VIDEO OUTPUTS: 1 SD VIDEO INPUTS: 4
HD VIDEO OUTPUTS: 1 HD VIDEO INPUTS: 2
GENERAL I/O: Ethernet, RS-232, RS-422, CANbus, Discretes INPUT VOLTAGE: 28 VDC
qUALIFICATION: DO-160 Qualified COOLING: Internal Fan
max power draw: 0.5A at 28 VDC SIGNAL: NTSC, PAL, 720p, 1080i, 1080p
removeable media: USB 2.0, SD, SATA INTERNAL STORAGE: 64 GB
AUDIO CHANNELS: Stereo storage media: SD, SSD SATA, USB



Part Number: Description:
AVR8411 Single Channel DVR



AVR8411
- Single Channel DVR
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
