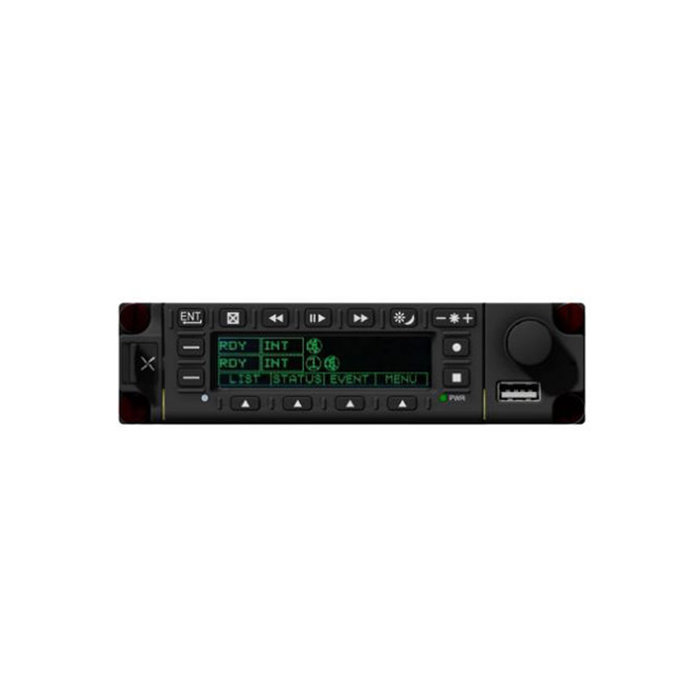

Picture of product AVR8414
Part #: AVR8414
Model: AVR8414
Desc: Multi-Channel DVR
OEM: Mercury Systems
ECCN: 7A994
Part Number :

Mercury Systems



AVR8414

FEATURES
  • The AVR8414 offers powerful recorder support for your critical missions.
  • This fifth-generation, multi-channel digital video recorder comes in a compact, Dzus-style housing
  • From 1080p60 to standard definition NTSC or PAL, the highly capable AVR8414 can record the wide range of signals required by ISR platforms
  • Engineered  for advanced operators who need the capability of recording multiple HD and SD sources– this allows up to five (5) simultaneous channels
  • Advanced features for the AVR8414 include event marking, KLV data, image snapshots, remote operation, jog-playback and playback-while-recording
  • It offers support for 1080p60 recording and streaming, as well as standard definition NTSC or PAL
  • The AVR8414 can be controlled via the front panel of the DVR or via an on-screen display and the product has multiple inputs and outputs
  • The high-resolution front panel is a NVIS compatible, graphical display that provides a wide range of status information and is a favorite among operators
  • The AVR8414 is part of our AVR8400 series, which provide enormous flexibility to mission systems operators and systems integrators
  • Reachback allows an operator to go back in time – up to three minutes to start a recording – so critical events are never missed as part of a mission


SPECIFICATIONS
SINGLE/MULTI CHANNEL RECORD: Multi storage media: SD, SSD, SATA, USB
display area: 2.6 in. (66.0 mm.) height: 1.5 in. (38.1 mm)
Weight: 1.4 lbs. (0.6 kg.) depth: 8.14 in. (206.8 mm.)
width: 5.75 in. (146.0 mm.) nvis: NVIS-A, NVIS-B
MAXIMUM resolution: 1080p60 KLV METADATA: MISB, STANAG 4609
STORAGE TEMPERATURE RANGE: 14° to 149° F operating temperature range: -45°C to +71°C
SD VIDEO OUTPUTS: 1 SD VIDEO INPUTS: 4
HD VIDEO OUTPUTS: 1 HD VIDEO INPUTS: 2
GENERAL I/O CANbus,Discrete, Ethernet, RS-232, RS-422 INPUT VOLTAGE: 28 VDC
qUALIFICATION: DO-160 Qualified







Part Number: Description:
AVR8414 Multi-Channel DVR



AVR8414
- Multi-Channel DVR
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
