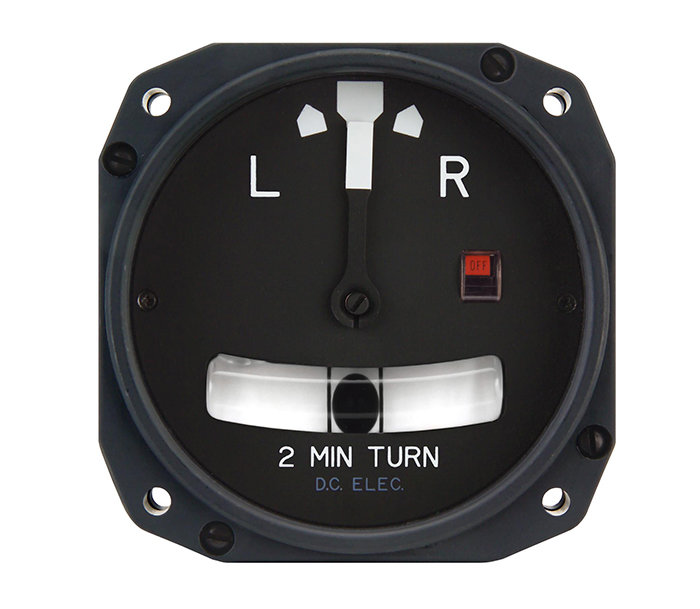

Picture of product 1234T100-3TZ
Part #: 1234T100-3TZ
Model: 1234T100-3TZ
Desc: Turn & Slip Indicator (Lighted)
OEM: Mid-Continent
NSN: 6610-01-615-8260
Sched-B: 9014206000
ECCN: 7A994
Cage Code: 59742
Part Number :


1234T100-3TZ
FEATURES
  • Standard 2-minute turn and slip indicator originally manufactured by Electric Gyro Corp. (EGC)
  • Power warning indicator
  • Certified to FAA TSO C3b
  • Lighted Bezel with HEA non-glare glass
  • 12-32VDC input voltage range
  • White inclinometer background color, black inclinometer ball color
  • 3 pin connector
  • 3 1/8" front or rear panel mounting



SPECIFICATIONS
Dimensions: 3.25"W x 3.25"H x 4.25"D Weight: 1.2 lbs.
Rotor Type: DC Altitude: -1000 to 35000 ft.
Power Consumption: 0.35A Temperature: -30 to +50C



1234T100-3TZ
- Turn & Slip Indicator (Lighted)

NSN: 6610-01-615-8260

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
