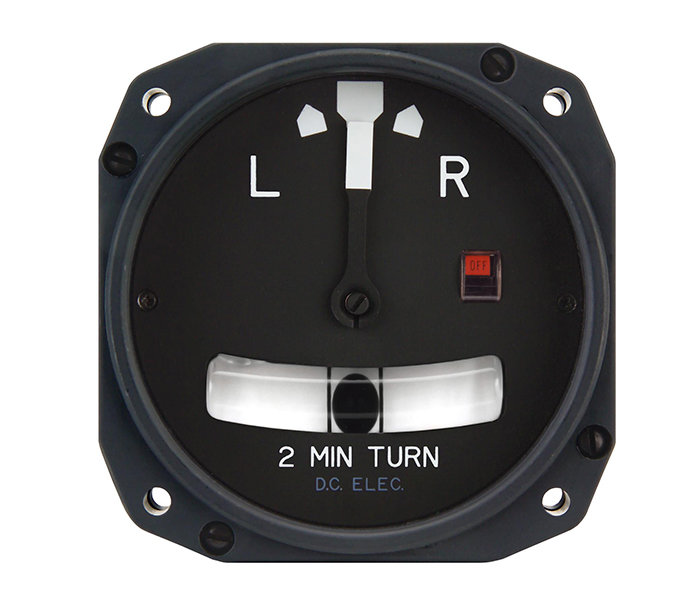

Picture of product 1234T100-7TZ
Part #: 1234T100-7TZ
Model: 1234T100-7TZ
Desc: Turn & Slip Indicator
OEM: Mid-Continent
NSN: 6610-01-476-7412
Sched-B: 9014206000
ECCN: 7A994
Cage Code: 59742
Part Number :


1234T100-3TZ
FEATURES
  • Standard 2-minute turn and slip indicator originally manufactured by Electric Gyro Corp. (EGC)
  • Power warning indicator
  • Certified to FAA TSO C3b
  • Unlighted Bezel with clear glass
  • 12-32VDC input voltage range
  • White inclinometer background color, black inclinometer ball color
  • 3 pin connector
  • 3 1/8" front or rear panel mounting



SPECIFICATIONS
Dimensions: 3.25"W x 3.25"H x 4.25"D Weight: 1.2 lbs.
Rotor Type: DC Altitude: -1000 to 35000 ft.
Power Consumption: 0.35A Temperature: -30 to +50C



1234T100-7TZ
- Turn & Slip Indicator

NSN: 6610-01-476-7412

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
