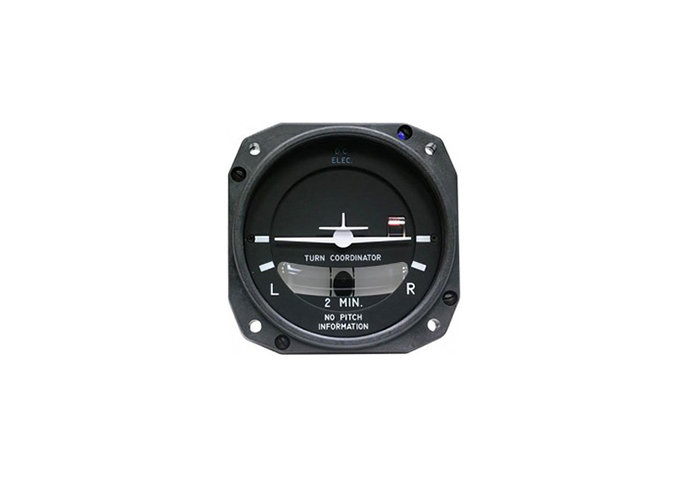

Picture of product 1394T100-3Z
Part #: 1394T100-3Z
Model: 1394T100-3Z
Desc: Turn Coordinator
OEM: Mid-Continent
Sched-B: 9014206000
ECCN: 7A994
Part Number :


1394T100-3Z



FEATURES

  • Standard 2-minute turn coordinator originally manufactured by Electric Gyro Corp. (EGC)
  • Power warning indicator
  • Certified to FAA TSO C3b
  • Lighted Bezel with HEA non-glare glass
  • 12-32VDC input voltage range
  • White inclinometer background color, black inclinometer ball color
  • 3 pin connector
  • 3 1/8" front or rear panel mounting



SPECIFICATIONS

Dimensions: 3.25"W x 3.25"H x 4.25"D Weight: 1.2 lbs.
Rotor Type: DC Altitude: -1000 to 35000 ft.
Power Consumption: 0.35A Temperature: -30 to +50C







Part Number: Description:
1394T100-3Z Turn Coordinator



1394T100-3Z
- Turn Coordinator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
