Picture of product 1394T100-7B
Part #: 1394T100-7B
Model: 1394T100-7B

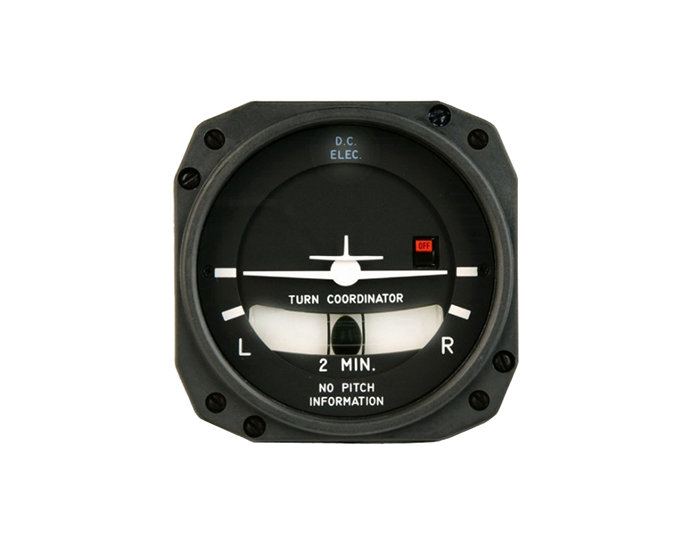

Desc: Turn Coordinator
OEM: Mid-Continent
Sched-B: 9014206000
ECCN: 7A994
Part Number :


1394T100-7RB
FEATURES
  • Standard 2-minute turn coordinator
  • Certified to FAA TSO C3b
  • Power warning indicator
  • 4,500 hours MTBF, more than double the original “Z” design
  • Brushless AC rotor operates on 10–32 Volts DC
  • Improved “Off” warning flag pulls out of view when rotor is up to speed
  • Direct replacement for the popular 1394T100-7Z and most standard 3-pin turn coordinators



SPECIFICATIONS
Dimensions: 3.25"W x 3.25"H x 5.00"D Weight: 1.4 lbs.
Rotor Type: AC Altitude: -1000 to 35000 ft.
Power Consumption: 0.28A Temperature: -30 to +50C
Input Voltage Range: 11 – 32 VDC Bezel Lighting: No
Inclinometer Ball Color: Black Inclinometer Background Color: White
Connector Number of Pins: 3 Turn Indication:: Standard 2-Minute Turn
Glass: Clear Mounting: 3 1/8" front or rear panel



1394T100-7B
- Turn Coordinator
Price Condition Status
$1,595.00 NEW OUTRIGHT REQUEST LEAD TIME
