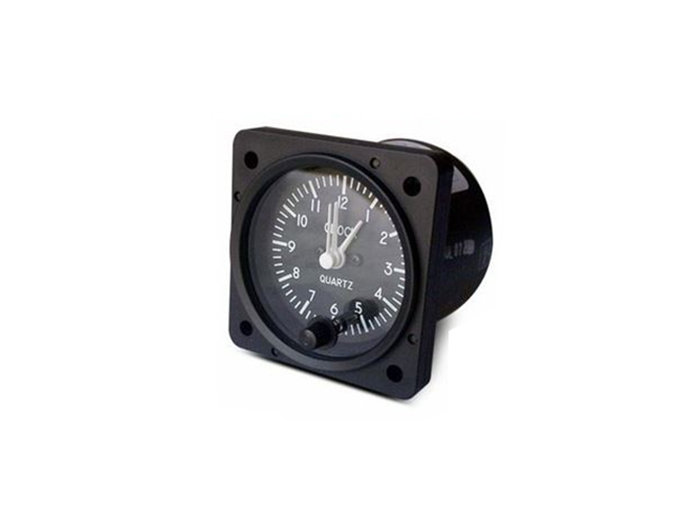

Picture of product MD-90L
Part #: MD-90L
Model: MD-90L
Desc: Quartz Clock (Lighted 8-32VDC)
OEM: Mid-Continent
NSN: 6645-01-580-8209
Sched-B: 9104000000
ECCN: 9A991.d
Cage Code: 59742
Part Number :

FOR REFERENCE ONLY



MD-90L

FEATURES
  • Precision quartz movement
  • Compact 2-inch size — fits standard panel cutout
  • Lighted version with field-replaceable light tray
  • Transient and reverse polarity protected
  • Original equipment for many major aircraft manufacturers
  • Low power consumption (3 mA)
  • Continuously powered by aircraft battery
  • FAA PMA certified
  • Designed and built in Wichita, Kansas, USA
  • One-year limited warranty




SPECIFICATIONS
Dimensions: 2.5 x 2.5 x 3.2 inches max Weight: 0.6 lbs
POWER INPUT: 8–32 VDC 3 mA max (without lighting) ACCURACY: ±30 seconds in 24 hrs
TEMPERATURE: –40°C to +82°C (–40°F to +180°F) HUMIDITY: 0 to 95% at 25°C
Altitude: -1,000 to +50,000 feet VIBRATION: .02 in. dbl. ampl., 1.5g @ 5 to 50 Hz
CERTIFICATION: FAA PMA certified MOUNTING:  Front or rear panel mounted
CONNECTOR: #6-32 threaded terminals



Part Number: Description:
MD-90l Quartz Clock (Lighted 8-32 VDC)
