Part #: MD11-4K
Model: MD11-4K

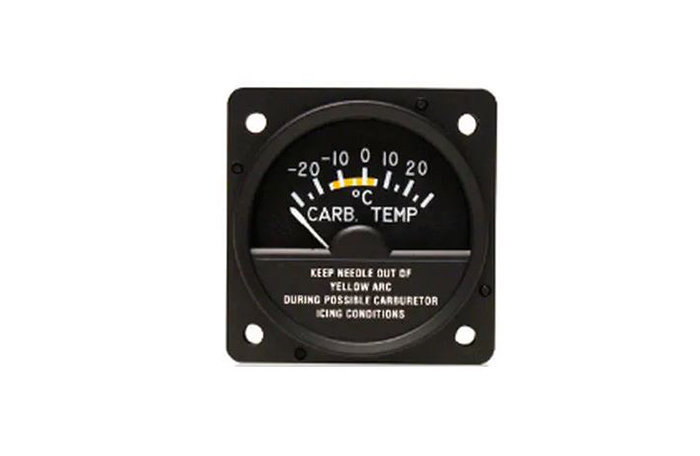

Desc: Carb Temp Indicator Kit (28V)
OEM: Mid-Continent
Sched-B: 9025198080
ECCN: 9A991.d
Part Number :


MD11-4K

FEATURES

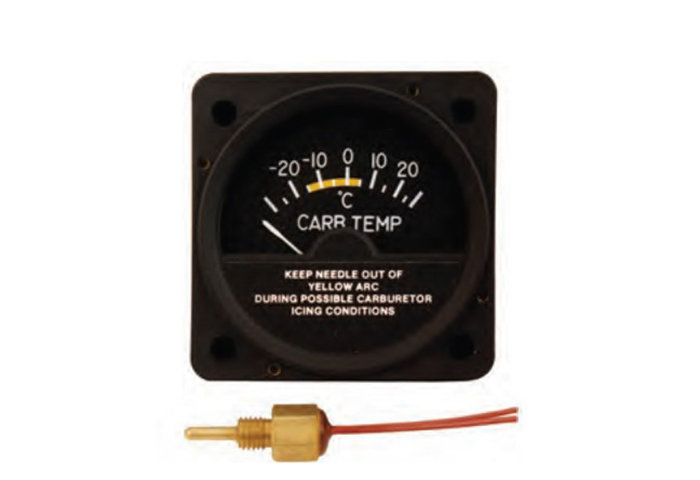

  • Carburetor Air Temperature Kit includes indicator, probe and connector
  • Detects potential carburetor icing
  • Reduces spark plug fouling
  • Extends engine life
  • Helps attain maximum fuel economy, range and power
  • Probe fits pre-tapped hole in Marvel-Schebler and Bendix carburetors
  • Quality connector included
  • Supplemental Type Certification FAA PMA approved
  • Designed and built in Wichita, Kansas, USA
  • One-year limited warranty

SPECIFICATIONS
Dimensions : 2.4 x 2.5 x 2.7 inches Weight: 0.3 lbs.
POWER INPUT: 14 VDC, 90 mA Altitude: -1000 to +40,000 ft.
OPERATING TEMPERATURE: –40°C to +87°C (–40°F to +190°F) Indicating Temperature: –30°C to +30°C (–22°F to +86°F)
HUMIDITY: 0 to 90% at 25°C VIBRATION: .02 in. dbl ampl., 1.5g @ 5 to 50 Hz
CERTIFICATION: FAA PMA approved mounting: Front or rear panel
case material: Flame-retardant polycarbonate connector: 3-pin AN type male (MS3102A–14S–07P)
mating connector: 3-pin AN type female (MS3106A14S–7S with MS3057–6A)
Part Number:  Description:
MD11-4K Carb Temp Indicator Kit (28V)



MD11-4K
- Carb Temp Indicator Kit (28V)
