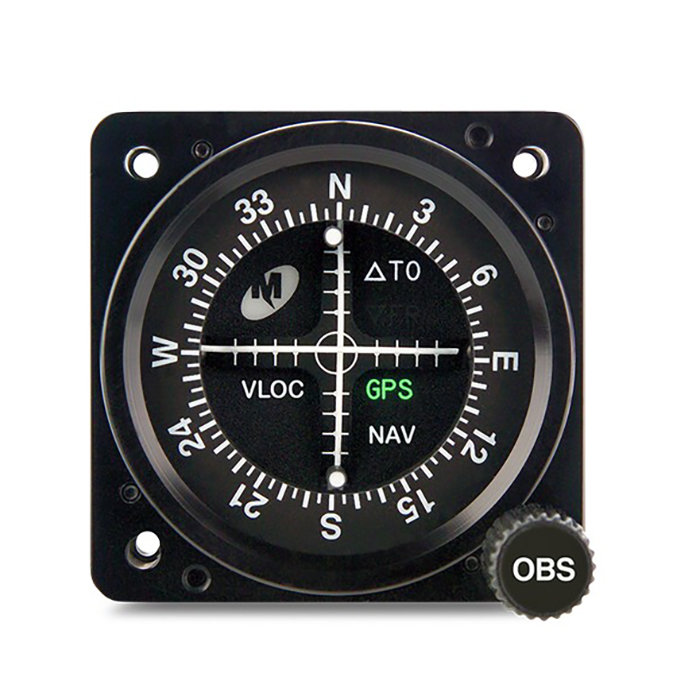

Picture of product MD222-406
Part #: MD222-406
Model: MD222-406
Desc: Course Deviation Indicator
OEM: Mid-Continent
NSN: 5826-01-571-2659
Sched-B: 9014206000
ECCN: 7A994
Cage Code: 59742
Part Number :





FEATURES

  • New-generation rectilinear meter movements for more accurate readings
  • Course selector and resolver output
  • Compact 2-inch size saves panel space
  • Precision replacement for older navigation indicators
  • Ideal for applications where space is limited or as a backup for glass panel displays
  • Rectilinear meter movements allow for more accurate readings
  • LED backlighting provides increased reliability and longer life
  • Built-in NAV, GPS and VLOC annunciators
  • Rugged construction includes ball bearings in critical areas
  • True course resolver output (1 volt, 30 Hz)
  • Quality Mil-Spec connectors included
  • FAA TSO certified for use with most GPS and VOR systems



SPECIFICATIONS

Power Input: Accepts 11 to 32 volts DC, 0.3A max Weight: 0.6 lbs.
Lighting: Internal white LED Lighting control voltage is selectable for 5, 14 or 28 VDC Altitude: –15,000 to +55,000 feet
Length: 3.5” Temperature: –30°C to +55°C (–22°F to 130°F)
Humidity: 95% non-condensing Cover Glass: Special HEA (anti-reflective) coating
Connector: 25-pin male D-Sub (MD25M3S0V50) Mating Connector: 25-pin female D-Sub (MD25F3R4000 or equivalent)
Operational Shock: Rigid mounting, 6G operational, 15G crash safety NAV/GS Deviation: (Input impedance) Normal: 1k ohms ± 10% Max Operating Temp Range: 1k ohms ± 25%, Deflection sensitivity*: Normal: 150 mV ± 10% Max Operating Temp Range: 150 mV ± 25%
Input Range: Common mode/reference 1 to 5 volts for signal inputs OBS Resolver: Zeroed at: Normal: 300° ± 1° ORZ Max Operating Temp Range: 300° ± 2.5°



Part Number: Description:
MD222-406 Course Deviation Indicator







MD222-406
- Course Deviation Indicator

NSN: 5826-01-571-2659

Price Condition Status
$3,450.00 NEW OUTRIGHT REQUEST LEAD TIME
