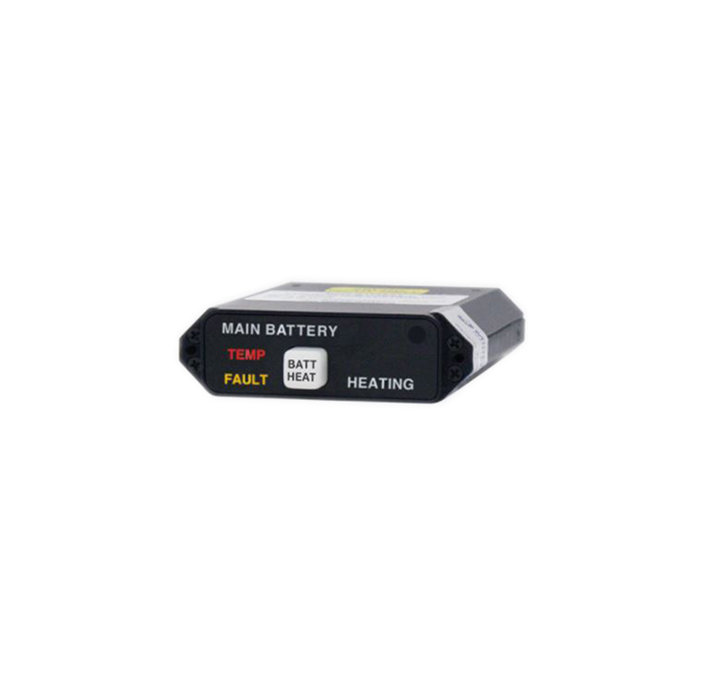

Picture of product MD41-1844
Part #: MD41-1844
Model: MD41-1844
Desc: Annunciation Control Unit for TB44
OEM: Mid-Continent
Part Number :





MD41



FEATURES

  • 28 VDC, 0.15A power input
  • Weight – 0.26 lbs
  • Long-life LEDs used for all lighting
  • Internally backlit selection switch
  • Daylight readable, deadfront inactive annunciations and automatic dimming
  • External dimming adjustment provided for balancing low-level light conditions
  • Designed and built in Wichita, Kansas, USA

SPECIFICATIONS

Power Input: 28 VDC, 0.15A Lighting: 28 VDC input LEDs
Dimming: Automatic Temperature: -55°C to 70°C (-67°F to 158°F)
MOUNTING: Rear instrument panel mount WEIGHT: 0.26 lbs (0.12 kg)
ALTITUDE: 55,000 ft MATING Connector: MCI P/N 7014517
Part Number: Description:
MD41-1844 Annunciation Control Unit for TB44




MD41-1844
- Annunciation Control Unit for TB44
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
