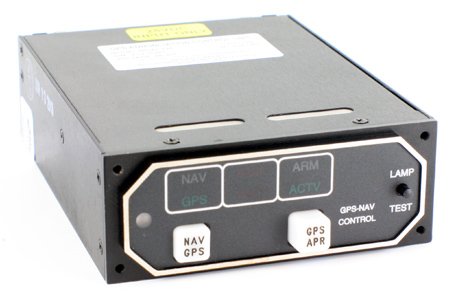

product image

Part #: MD41-528

OEM:

Mid-Continent

Desc:

Annunciator Control Unit-

Part Number :


MD41
FEATURES
  • Interface and annunciation device that combines navigation source switching to pilot's primary CDI or HSI with key GPS selection and annunciation functions
  • Transfers Navigation display between VOR/LOC and approach certified GPS systems
  • Provides up to 19 user defined relay poles
  • TSO C129 Approved to meet NEW FAA field approval requirements
  • Lighted push buttons and daylight readable annunciators
  • Push-button lighting level is controlled by the instrument lighting rheostat
  • Annunciator lighting is automatically dimmed by means of a photocell feedback circuit
  • Available in Horizontal or Vertical configuration
  • Available with 5, 14, or 28 Volt lighting
  • Available for most GPS manufacturers (see table below)
SPECIFICATIONS
Dimensions (typical): 3.50"W x 1.350"H x 4.625"D Weight: 0.75 lbs.
RTCA: DO-160C, DO-208 Altitude: certified to 55000 ft.
Left-Right Meter: DC resistance: 1000 ohms +- 50 ohms Current Rating: zero center
Part NumberAnnunciator Control Unit Description:
MD41-324 14VDC, Horizontal Mount, For Use With KLN-90B
MD41-328 28VDC, Horizontal Mount, For Use With KLN-90B
MD41-3285V 5VDC, Horizontal Mount, For Use With KLN-90B
MD41-334 14VDC, Vertical Mount, For Use With KLN-90B
MD41-338 28VDC, Vertical Mount, For Use With KLN-90B
MD41-3385V 5VDC, Vertical Mount, For Use With KLN-90B
MD41-424 14VDC, Horizontal Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-01
MD41-428 28VDC, Horizontal Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-00
MD41-4285V 5VDC, Horizontal Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-02
MD41-434 14VDC, Vertical Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-06
MD41-438 28VDC, Vertical Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-05
MD41-4385V 5VDC, Vertical Mount, For Use With GPS-155/165- same as Garmin P/N 013-00029-07
MD41-444 14VDC, Horizontal Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-11
MD41-448 28VDC, Horizontal Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-10
MD41-4485V 5VDC, Horizontal Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-12
MD41-454 14VDC, Vertical Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-16
MD41-4585V 5VDC, Vertical Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-17
MD41-458 28VDC, Vertical Mount, For Use With GPS-155XL/GNC300/GNC300XL- same as Garmin P/N 013-00029-15
MD41-524 14VDC, Horizontal Mount, For Use With KLN-89B/KLN-94
MD41-528 28VDC, Horizontal Mount, For Use With KLN-89B/KLN-94
MD41-5285V 5VDC, Horizontal Mount, For Use With KLN-89B/KLN-94
MD41-534 14VDC, Vertical Mount, For Use With KLN-89B/KLN-94
MD41-538 28VDC, Vertical Mount, For Use With KLN-89B/KLN-94
MD41-624 14VDC, Horizontal Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-628 28VDC, Horizontal Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-6285V 5VDC, Horizontal Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-634 14VDC, Vertical Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-638 28VDC, Vertical Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-6385V 5VDC, Vertical Mount, For Use With Trimble 2000/2101 IFR GPS
MD41-724 14VDC, Horizontal Mount, For Use With Apollo/Garmin AT 2001/2101/GX50/GX60
MD41-728 28VDC, Horizontal Mount, For Use With Apollo/Garmin AT 2001/2101/GX50/GX60
MD41-734 14VDC, Vertical Mount, For Use With Apollo/Garmin AT 2001/2101/GX50/GX60
MD41-738 28VDC, Vertical Mount, For Use With Apollo/Garmin AT 2001/2101/GX50/GX60
MD41-824 14VDC, Horizontal Mount, For Use With Northstar M3
MD41-828 28VDC, Horizontal Mount, For Use With Northstar M3
MD41-834 14VDC, Vertical Mount, For Use With Northstar M3
MD41-838 28VDC, Vertical Mount, For Use With Northstar M3
MD41-9285V 5VDC, Horizontal Mount, For Use With KLN-900
MD41-928 28VDC, Horizontal Mount, For Use With KLN-900
MD41-9385V 5VDC, Vertical Mount, For Use With KLN-900
MD41-938 28VDC, Vertical Mount, For Use With KLN-900



MD41-528
- Annunciator Control Unit-
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
