Part #:

Model: TB40

Mid-Continent

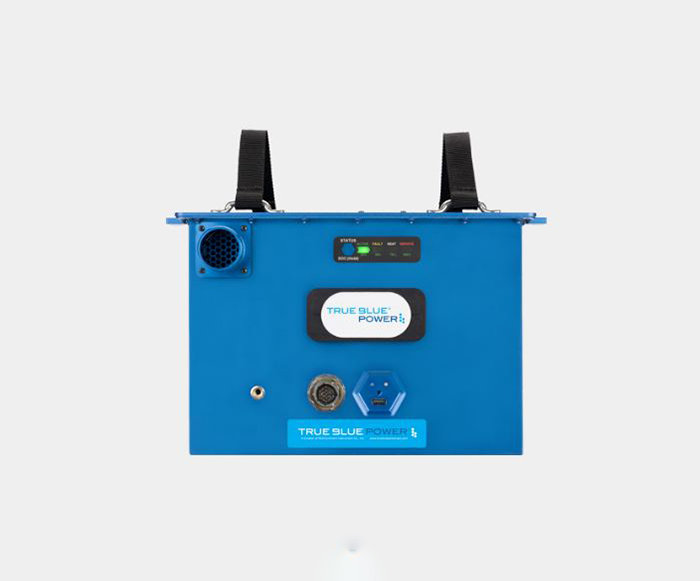

product image
Part Number :



TB40

FEATURES
  • TB40 lithium-ion aircraft battery offers on-condition maintenance and is configurable to meet the needs of each specific aircraft, including charge current limit, end-of-life capacity, minimum dispatch capacity and engine-start readiness
  • The intelligent battery systems communicate real-time, reliable and accurate state of charge and state of health
  • TB40 weighs up to 60% less, and delivers more amps per pound, than any other battery
  • More power for engine starts, more energy for emergency and back-up power, ultra-fast recharge and much longer life
  • 40 amp-hour nominal at 23°C/73°F
  • Weighs 36.6 lbs. — up to 60% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty
  • Software: version 1.0.1

SPECIFICATIONS
Dimensions: 9.1" L x 14.7" W x 8.8" H Weight: 36.6 lbs. (16.60 kg)
charge voltage: 28 VDC nominal Output voltage: 26.4 VDC nominal
Output current: 525A continuous, 1500A max technology: Advanced NanoPhosphate lithium-ion cell chemistry
CHARGE CURRENT LIMITING : Programmable up to 4C or 10C unlimited energy density:  63.6 WH/kg
operating temperature: -40°C to 70°C (-40°F to 158°F) configuration: 16P8S; 4 parallel x 8 in series x 4
maintenance: On-condition battery life expectancy: 8 years (average)
Case: Anodized aluminum, blue Certification: FAA TSO-C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA
capacity: 40 amp-hour nominal (at 23°C/73°F)
Part Number: Description:
6430040-1 TB40 Advanced Lithium-ion  Aviation  Battery
6430040-2 TB40 Advanced Lithium-ion  Aviation  Battery



°
6430040-1
- Aviation Battery (26.4VDC, 40 Ah, Lithium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
6430040-2
- Lithium-ion battery, 41 amp hour
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
