- Amplified Speaker
Part Number :
- Select Part Number -
Select part number above to view pricing and availability.
Add to RFQ
* Price & Availability valid as of 10/24/20 19:31:48 EDT *
Need Repair? - Submit A Request
All PSAIR22N Availability

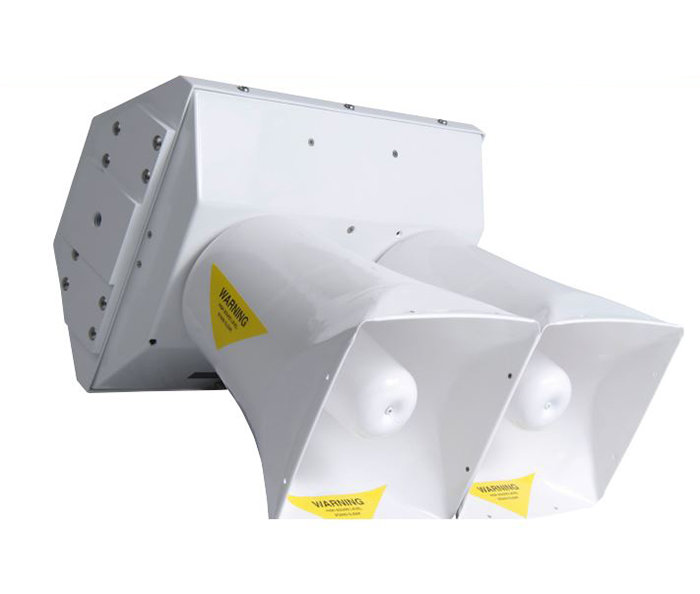

Aerodynamic hexagon enclosure that reduces weight, drag, surface area and the vertical clearance required for mounting
The PSAIR22N comes in 4 models to suit your specific aircraft and installation requirements.
Each has 2 horns, 4 speaker drivers and our new aerodynamic hexagon enclosure.
The differences between these models are the components housed within the hexagon enclosure
Our standard configuration. Enclosure includes a 600-watt amplifier
The PSAIR22N hexagon enclosure has two connectors.
The “Power” connector will be attached to 28VDC either at the aircraft power buss (usu. via ring terminal) or an auxiliary battery pack
The “Remote” connector will attach to the Remote Control Unit (PSRCU) or to a suitable cockpit audio panel such as the Technisonic A790
As shown on the front photo, mating plates attached to each side of the PSAIR22N enclosure enable it to be secured to a mounting bracket
This can be the PSBRKT22N used for demonstrations or a bracket designed and fabricated by your installer to meet your installation requirements
Wattage of standard:
MAX. CURRENT DRAW
recommended breaker rating
spl @ 1M
RANGE AT 70 DB
1 Mile , 1600 meters
weight of standard amplifier speaker
24 lbs, 10.89 Kg
max space requirement for speaker array
13.75” x 9.75” x 12.75” 34.93 cm x 24.77 cm x 32.39 cm
PUBLIC ADDRESS SYSTEM DESCRIPTION:
600-watt PA for mid-sized helicopters and fixed-wing aircraft
