Part #: AS-3808/ARC
Model: AS-3808/ARC
NSN: |
5985-01-249-2247 |
OEM: |
RA Miller |
Desc: |
UHF Blade Antenna |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
|
* Price & Availability valid as of 03/07/21 12:21:10 EST *

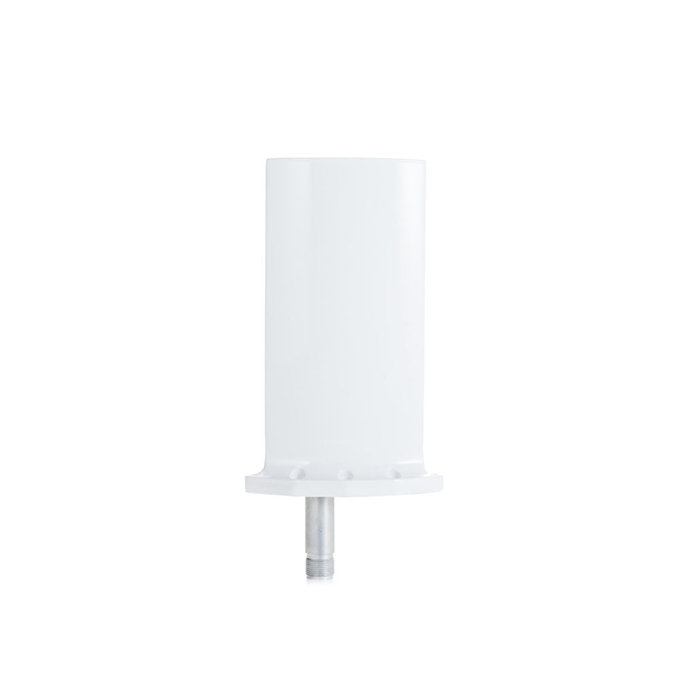

AS-3808/ARC
DESCRIPTION:
- The AS-3808/ARC Antenna is designed for high power airborne UHF Communications
- The antenna is produced to Electrospace Systems Specification EM-A0051 which specifies environmental tests per MIL-STD-810
- A operating altitude of 70,000 ft and operating velocity shall be Mach 1.1 maximum at sea level and Mach 1.7 maximum above 27,000 ft
- The antenna is painted with Skydrol resistant urethane coating per MIL-PRF-85285, Color White No. 17925
- The antenna is a one-piece blade to replace the AT-1076/ARC Antenna
SPECIFICATION:
| Model | AS-3808/ARC |
| NSN/Cage | 5985-01-249-2247 |
| Application | Airborne Communications |
| Frequency | 225 – 400 MHz |
| Impedance | 50 Ohms Nominal |
| Gain | +3 to -1 dBi |
| VSWR | 2.0:1 Maximum |
| Polarization | Vertical |
| Pattern | Omni-Directional |
| Connector | “HN” Female |
| RF Power Capacity | 1500 Watts Continuous |
| Color | Gloss White |
AS-3808/ARC
- UHF Blade Antenna
NSN: 5985-01-249-2247
| Price | Condition | Status |
|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
