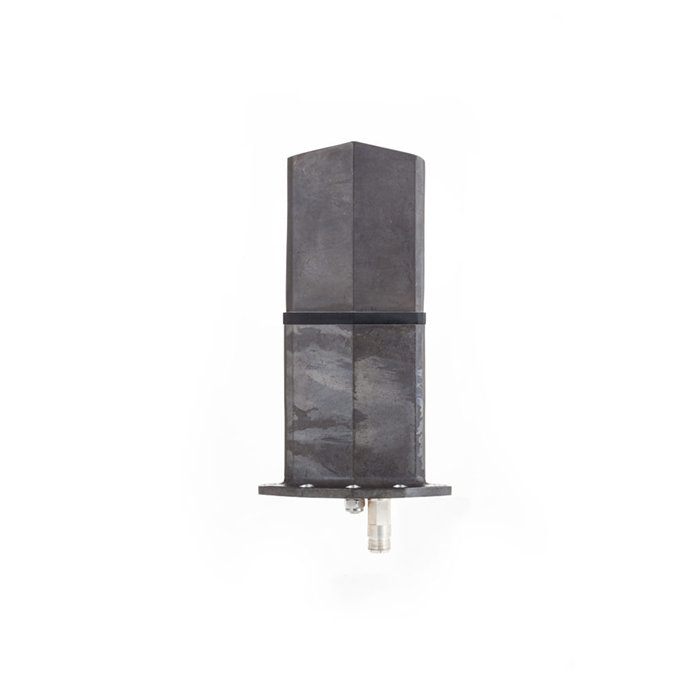

product image

Part #: AT-256A/ARC

Model: AT-256A/ARC

NSN:

5985-00-217-0457

OEM:

RA Miller

Desc:

Comm Antenna (225-400 MHZ)

Part Number :

RAMI



AT-256A/ARC

  • The AT-256A/ARC Antenna is used for airborne communications on various fixed-wing and rotary-wing aircraft.
  • The antenna is produced to Military Specification MIL-DTL-5815.
  • The antenna is designed to operate at the extreme temperature range of -65°F to 257°F with intermittent operation at 302°F and can withstand a static load of 8 psi perpendicular to the blade, with an ultimate of 12 psi. T
  • he antenna is protected by an anodic coating to prevent corrosion and the outside surfaces will resist partical erosion up to Mach 0.95. The antenna’s seal-ability is tested to an altitude of 70,000 ft.





Model AT-256A/ARC
NSN/Cage 5985-00-217-0457
Application Airborne Communications
Frequency 225 – 400 MHz
Impedance 50 Ohms Nominal
Gain -1 dBmp
VSWR 2.0:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “N” Female
RF Power Capacity 50 Watts Maximum



AT-256A/ARC
- Comm Antenna (225-400 MHZ)

NSN: 5985-00-217-0457
