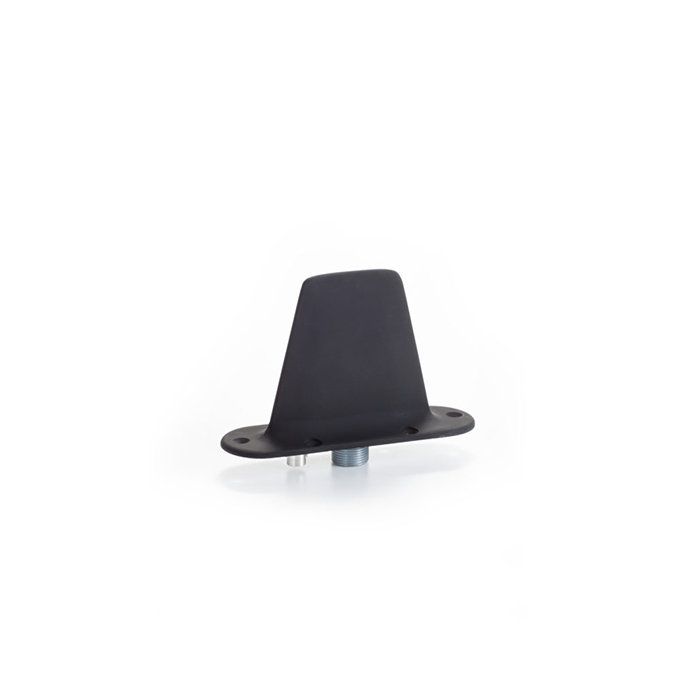

Part #: AT-741B/B

Model: AT-741B/B

NSN:

5985-00-106-0906

OEM:

RA Miller

Desc:

L-Band TACAN Antenna

Part Number :

RAMI



AT-741B/B



DESCRIPTION:

  • The AT-741B/B Antenna is designed for use with Radar Interrogation
  • The antenna is constructed from an aluminum casting which is capable of withstanding particle erosion to speeds of up to Mach 2
  • This antenna is produced to Military Specifications MIL-DTL-25708 and is qualified environmentally to Military Standard MIL-STD-810
  • The antenna operates within a temperature range of -67°F to 300°F and can withstand a static load of 15 psi perpendicular to the blade
  • The antenna is operational to altitudes of 100,000 ft and is finished with a Skydrol resistant lusterless CARC black coating



SPECIFICATION:

Model AT-741B/B
NSN/Cage 5985-00-106-0906
Application Tacan, Identification Beacon
Frequency 960 – 1220 MHz
Impedance 50 Ohms Nominal
Gain -0.5 dBmp
VSWR 1.4:1 Maximum (Antenna)
1.5:1 Maximum (Sample Probe)
Polarization Vertical
Pattern Omni-Directional
RF Power Capacity 4 kW Peak, 0.1 kW Continuous
Probe Attentuation 19.0 ± 3.0 dB
Color CARC Black



AT-741B/B
- L-Band TACAN Antenna

NSN: 5985-00-106-0906
