Part #: AV-14

OEM:

RA Miller

Desc:

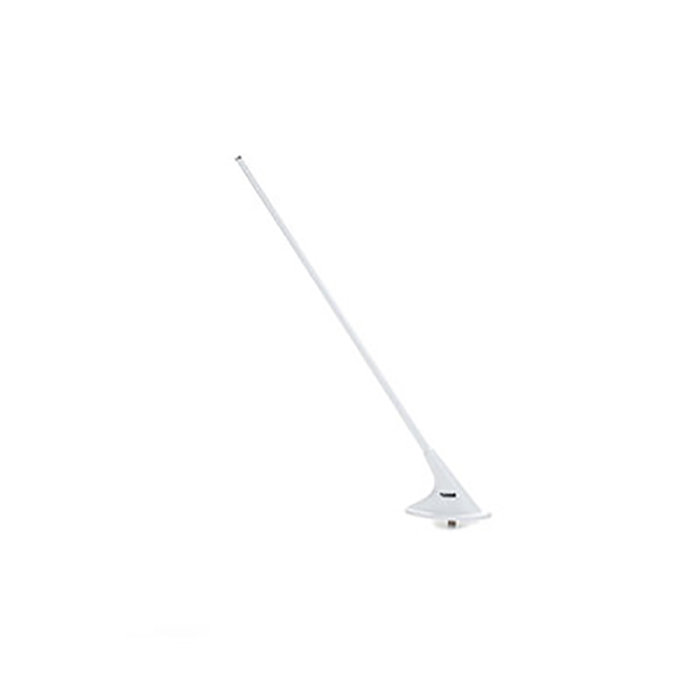

Broadband Antenna

Part Number :

RAMI



AV-14



DESCRIPTION:

  • The AV-14 is similar to the AV-10 using the same 4-bolt mounting base except it has a shorter radiating whip element.
  • The antenna is designed to operate in the Public Service and Business Bands 138-174 MHz.
  • The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.
  • It has a drag force of 2.70 lb @ 250 mph. This antenna is a direct replacement for the CI 177-1.



SPECIFICATION:

Model AV-14
Application Airborne Communications
Frequency 138 – 174 MHz
Impedance 50 Ohms Nominal
VSWR 2.0:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “BNC” Female
Max Height 17″
RF Power Capacity 25 Watts
FAA TSO C37d, C38d
AV-14
- Broadband Antenna
Price Condition Status
$338.00 NEW OUTRIGHT REQUEST LEAD TIME
