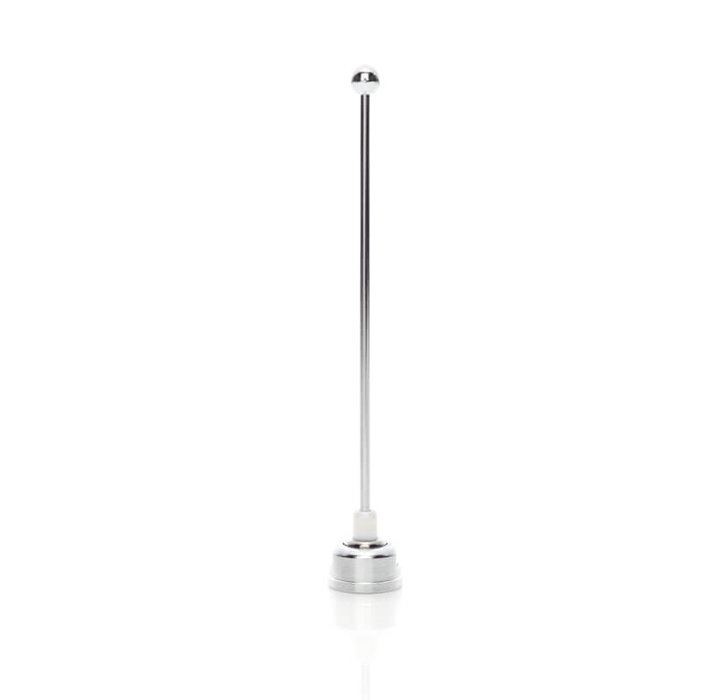

Picture of product AV-15

Part #: AV-15

NSN:

6515-01-035-7922

OEM:

RA Miller

Desc:

UHF Comm Stub Antenna

Part Number :


AV-15



FEATURES

  • AV-15 is used with aviation, land mobile radio, and flight phone bands
  • Chrome-plated phosphor bronze whip, set in a teflon insulator and the chrome-plated ball tip provides low noise static discharge
  • Designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.



SPECIFICATIONS

Application: Airborne Communications Frequency: 450 – 470 MHz
Impedance: 50 ohms VSWR: 1.5:1 Maximum
Polarization: Vertical Pattern: Omni-Directional
Connector:  “N” Female FAA TSO: C37d, C38d
Max Height: 6.25″ Max Weight: 2.5 oz.
RF Power Capacity: 100 Watts



Part Number: Description:
AV-15 UHF Comm Stub Antenna



AV-15
- UHF COM STUB ANTENNA

NSN: 6515-01-035-7922

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
