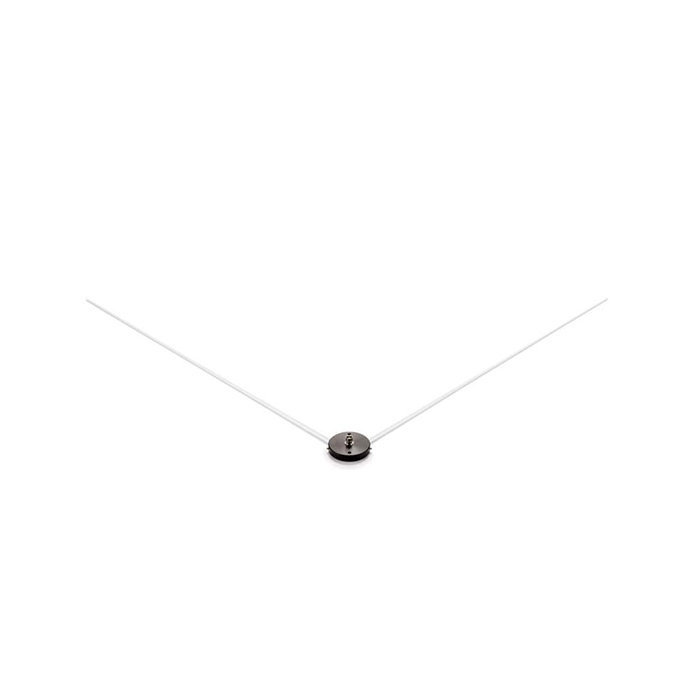

Picture of product AV-520

Part #: AV-520

OEM:

RA Miller

Desc:

VOR/LOC/GS Antenna

Part Number :



AV-520


FEATURES
  • AV-520 is a “V” style VOR/LOC/GS antenna utilizing detachable painted stainless steel elements and internal balun transformer
  • Rated at speeds up to 350 mph and altitudes up to 50,000 feet
  • Direct replacement for the CI 159C


SPECIFICATIONS

Application: VOR/LOC/GS Receive Only Frequency: 108-118 MHz, 328-336 MHz
Impedance: 50 ohms nominal VSWR: 3.0:1 Max. 108-118 MHz, 2.0:1 Max. 328-336 MHz
Polarization: Horizontal Pattern: Omni-Directional
faa tso: 10 Watts CW Connector: BNC Female
Max Weight: 0.50 oz. Max  model: AV-520
Part Number: Description:
av-520 VOR/LOC/GS Antenna



AV-520
- VOR/LOC/GS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
