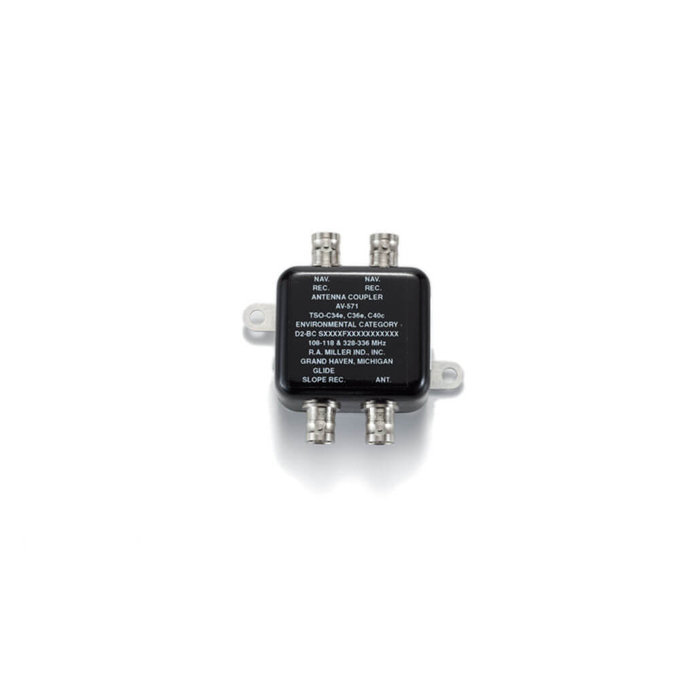

Picture of product AV-571

Part #: AV-571

OEM:

RA Miller

Desc:

Antenna Coupler

Part Number :



AV-571



FEATURES

  • The AV-571 diplexer/splitter splits the signal from a VOR-Type antenna to feed two NAV and one Glide Slope receivers
  • This diplexer/splitter’s construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.
  • Direct replacement for the CI 505.



SPECIFICATIONS
Application: VOR/LOC/GS (Receive Only) Frequency: 108-118 MHz, 328-336 MHz
Impedance: 50 ohms nominal VSWR: 1.4:1 Maximum
Polarization: Vertical Pattern: Omni-Directional
MAX WEIGHT: 3.5 oz. CONNECTOR: (4) “BNC” Female
FAA TSO: C34e, C36e, C40c ISOLATION: 22 dB Minimum / 35 dB Avg
INSERTION LOSS: 1 dB Maximum (GS), 3.5 dB Maximum (VOR/LOC)
Part Number: Description:
av-571 Antenna Coupler, Diplexer, Splitter



AV-571
- Antenna Coupler
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
