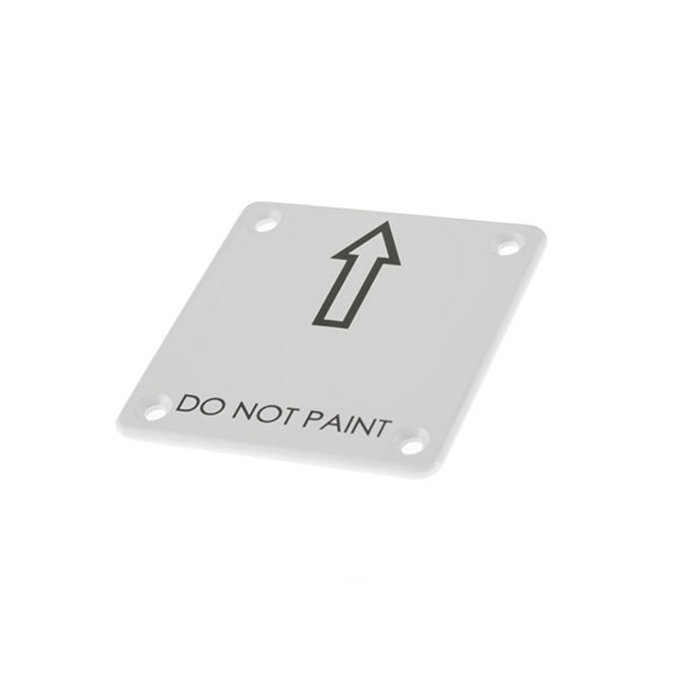

AV-601
DESCRIPTION:
- The AV-601 antenna is designed specifically to meet FAA TSO-C87a specifications
- Qualification testing includes meeting the requirements of EUROCAE ED-30, Edition 2, “Minimum Performance Standards for Airborne Low Range Radar Altimeter Equipment”, as modified by Appendix 1 of the TSO
SPECIFICATION:
| Model Number | AV-601 |
| Application | Airborne Low Range Radar Altimter |
| Frequency | 4200-4400 MHz |
| Impedance | 50 Ohms |
| VSWR | 1.5:1 Max (4275-4325 MHz) 2.3:1 Max (4200-4400 MHz) |
| Polarization | Linear |
| Pattern | Roll Plane(E): 45° min. |
| Beam Widths | Pitch Plane (H): 40° min. |
| Connector | TNC Female |
| Max Height | .14″ |
| RF Power Capacity | 5 watts avg./500 watts max. |
| FAA TSO | C87a |
