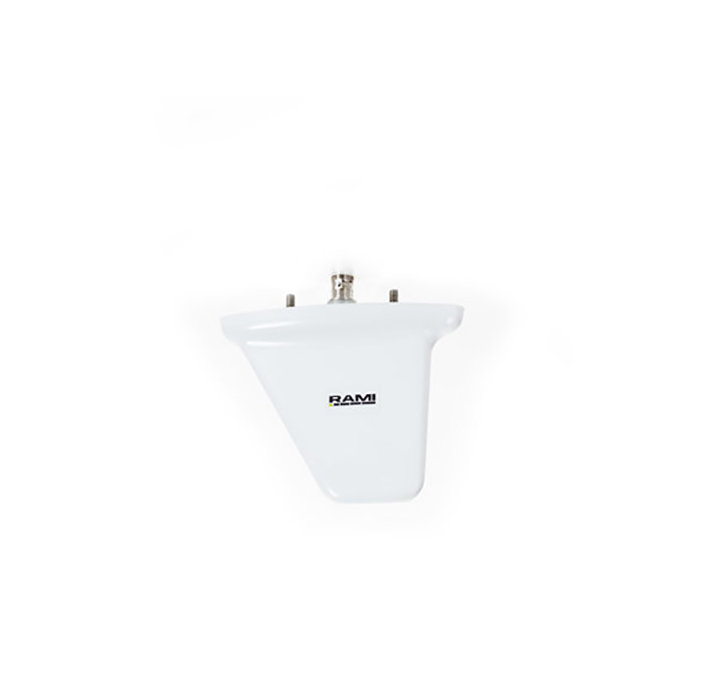

Picture of product AV-74

Part #: AV-74

OEM:

RA Miller

Desc:

DME/Transponder Antenna

Part Number :



AV-74



FEATURES

  • RThe AV-74 is a broadband blade type antenna for transponder or DME application
  • Constructed of an acrylonitrile-styrene-acrylic (ASA) shell
  • The white color allows maximum performance without losses due to color pigments or unseen dirt
  • Supplied with a cellular neoprene mounting pad and hardware
  • Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft
  • It has a drag force of 0.09 lbs @ 250 mph.
  • Built to be a direct replacement for the CI-105



SPECIFICATIONS
Application: Transponder/DME/ADS-B Frequency: 960 – 1220 MHz
Impedance: 50 ohms nominal VSWR: 1.5:1 Maximum
Polarization: Vertical Pattern: Omni-Directional
RF Power Capacity: 2.5 kW Peak Connector: BNC Female
Max Weight: 0.2 lbs. Max Height: 3.4" Max





Part Number: Description:
AV-74 DME/Transponder Antenna



AV-74
- DME/Transponder Antenna
Price Condition Status
$195.00 NEW OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
