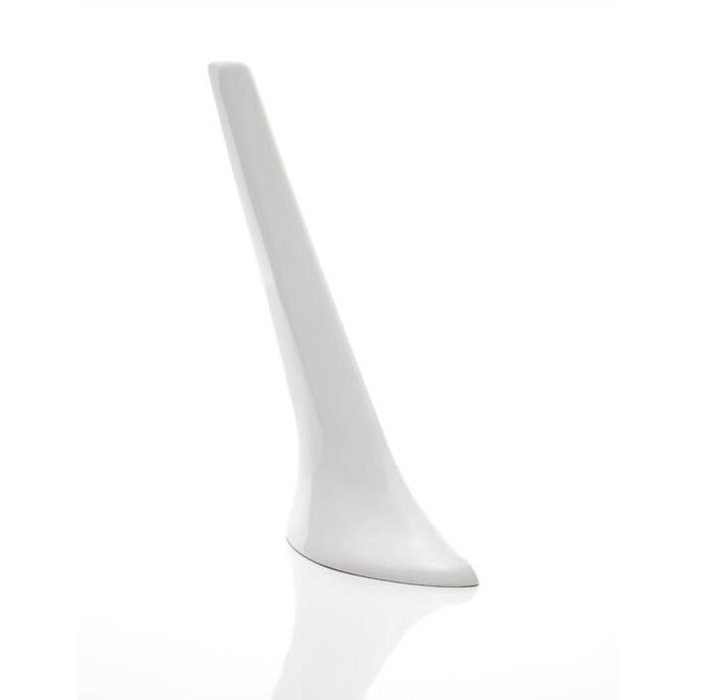

Picture of product AVT4

Part #: AVT4

OEM:

RA Miller

Desc:

MHZ Comm Antenna

Part Number :



AVT-4



FEATURES

  • AVT-4 is a broad-band VHF communications antenna. It incorporates a low drag blade housing design for high strength and a radiating element encapsulated in rigid polyurethane foam.
  • Finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad.
  • Designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.



SPECIFICATIONS

Application: Airborne Communications Frequency: 118 – 137 MHz
Impedance: 50 ohms nominal VSWR:  3.0:1 Max.
Polarization: Vertical Pattern: Omni-Directional
max height: 13″ RF Power Capacity: 30 Watts
connector: “BNC” Female FAA TSO: C37d, C38d
Part Number: Description:
avT-4 MHZ Comm Antenna



RAMI

AVT4
- MHZ COMM ANTENNA
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
