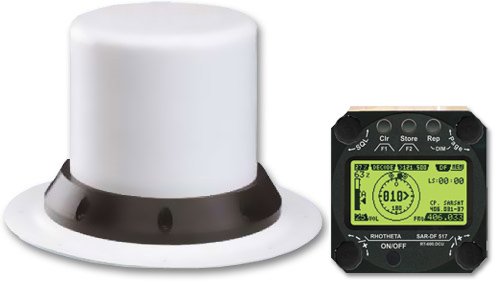

Picture of product RT-600A

Part #:

Model: RT-600A

OEM:

Rhotheta

Desc:

SAR-DF 517 Complete System, Standard Ops

Part Number :


RT-600 Series
FEATURES
  • Multi-Band Direction Finder System for Airborne SAR
  • SAR-DF 517
  • Universal SAR direction finder: VHF aviation and marine band, UHF aviation band, Cospas-Sarsat frequency
  • No additional equipment is required in the aircraft since the electronic direction finding components are integrated into the antenna
  • High reception sensitivity to permit detection of extremely weak or distant signals
  • High direction finder accuracy, precise and stable display
  • Optimized for use on board aircraft: compact display and control unit with LCD display



SPECIFICATIONS
Weights: Display unit: 250 g / Bearing antenna: 2000 g
Dimensions: Display unit: 82mm W x 82mm H x 43mm D / Bearing antenna: ∅270mm x 185mm
Method of bearing: Doppler-principle (3kHz rotational frequency, right / left rotation)
bearing accuracy: ±5°
Internal resolution:
Sensitivity: RF-Voltage at Receiver Input (50Ohms) VHF < 100nV; Sea Band < 100nV; UHF < 100nV; 406MHz < 150nV
Frequency stability: ±2.0 ppm (Δf/f=±2·10-6) [at Temperature range -30°C to +80°C]
Receiving channels: 8 (four of them are free adjustable)
Receiving frequencies: EMERGENCY MODE:                                                     TRAINING MODE: 121.500 MHz (VHF)                                                      [118.000 - 122.975] MHz 156.800 MHz (maritime, channel 16)                            [156.000 - 161.975] MHz 243.000 MHz (UHF)                                                      [240.000 - 245.975] MHz 406.025 MHz (Cospas/Sarsat)                                       [400.000 - 409.975] MHz
Scanning mode: When receiving Cospas/Sarsat signals, the emergency frequencies 121,500 MHz and 243,000 MHz may be monitored simultaneously
Cospas/Sarsat analysis: Reception and analysis/decoding of Cospas/Sarsat data signal (112 resp. 144 bit, 400 baud, biphase L-phase modulated, with Bose-Chaudhuri-Hocquenghem error test / specified according Cospas/Sarsat C/S T.001 October 1999)
Bearable kinds of modulation: A3E, F3E, A3X (ELT-modulation); bearing mostly independent of modulation
Polarisation: Vertical
Error of polarisation: ≤ 5° at 60° field vector rotation
Garbling cone: app. 30° to the vertical
Time of response: ≤ 50 ms (with sufficient receiving field strength)
LC-graphic display: 128x64 dots, supertwist /transflective, extended range of temperature, dark-blue display on yellow-green background, lit up. Free adjustable (exponentiell) dimming of brightness
Supply voltage range: 12 V - 35 V DC
Current consumption: LCD-background lighting Off: max. 350 mA (12 V DC) / 200 mA (24 V DC) LCD-background lighting 100%: max. 600 mA (12 V DC) / 300 mA (24 V DC)
Interface: External connections (optional / at Sub-D 9pol. connector X4 male)
Pin 8: EXTERNAL VOLTAGE FOR VARIABLE DIMMING: Analog input signal for variable controlling of the LCD-background and legends illumination. Input voltage free adjustable in the range of [1.5-33]V at edit menu (Display Control Unit Page 5). Look chapter edit menu. Default setting [10-28]V. (10V=Off, 28V=max. dimming) Impedance of input > 50 kΩ
Pin 6: NIGHT STATUS LINE: Low-active. At input voltage < 2.5V the dimming operates in night mode. Max. of brightness ca. 2% of day/default mode impedance of input > 50 kΩ  Only at SAR-DF 517 N with NVG front panel, otherwise do not use.
Pin 4: NVG STATUS LINE: Low-active. At input voltage < 2,5V the dimming operates in NVG mode. Max. of brightness ca. 2% of day/default mode Impedance of input > 50 kΩ Only at SAR-DF 517 N with NVG front panel, otherwise don’t connect.
Pin 7: AUDIO OUTPUT SIGNAL: AC coupled voltage source with very low inner resistance.  Max. output voltage app. 8Vss = 2,83VRMS at Volume Max.  Max. output power ca. 2W with 4Ω speaker.  If a headphone is connected [32…600]Ω / 100mW, we recommend using a resistor (18Ω / 0,25W) Between audio output and headphone to prevent damaging the headphone.
Serial interface RS232: (9600 baud, 8 databits, 1 stoppbit, no parity)
Pin 3: Txd: Serial output (ca. ±10V)
Pin 2: Rxd: Serial input (ca. ±10V)
Display: Permissible operating temperature: -20°C - +60°C Permissible storage temperature: -30°C - +80°C
Antenna: Permissible operating temperature: -40°C - +60°C Permissible storage temperature: -55°C - +80°C
Protection System: Bearing antenna : IP 67
Part NumberModelRT-600 Description:
RT-8610 RT-600A Conventional SAR, System
RT-8602 RT-600A AU Conventional SAR, Antenna Unit
RT-8605 RT-600A DU Conventional SAR, Display Unit
RT-8611 RT-600A NVG Conventional SAR, NVG System
RT-8606 RT-600A NVG DCU Conventional SAR, NVG Display Unit
RT-8620 RT-600LE Law Enforcement SAR, System
RT-8621 RT-600LE AU Law Enforcement SAR, Antenna Unit
RT-8622 RT-600LE DCU Law Enforcement SAR, Display Unit
RT-8623 RT-600LE NVG Law Enforcement SAR, NVG System
RT-8624 RT-600LE NVG DCU Law Enforcement SAR, NVG Display Unit
