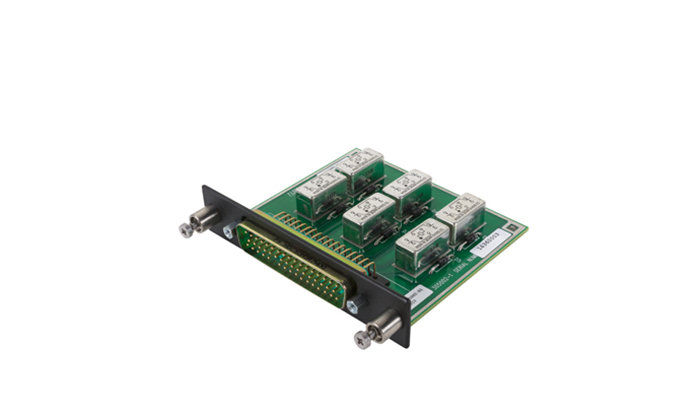

Picture of product 305002-01

Part #: 305002-01

OEM:

Sandia Aerospace

Desc:

Relay Card

Part Number :
Sandia Aerospace
SR 623 Relay Card

FEATURES
  • The SR 623 uses six, two pole hermetically sealed, gas filled relays to provide a total of twelve poles of switching. Relays are qualified to MIL-R-39016/6
  • Certification: FAA PMA
  • Max Pick up Voltage: 18VDC
  • Min Drop Voltage: 1.5VDC
  • Max Contact Rating: 2A @ 28VDC Resistive Load
  • .75A @ 28VDC Inductive Load (200mH)
  • .16A @ 28VDC Lamp Load


SPECIFICATIONS

Weight: .24 lbs dimensions: W 3.92 x H 3.5 x D .82 in
operating temperature: -55° to +70°C aLTITUDE: 70,000 ft.
voltage: 28 VDC STC/ PMA: ST3007WI-T/ Yes
CURRENT REQ: 250mA AIRCRAFT: Cessna Citation 650
Part Number Description
305002-01 Relay Card





305002-01
- Relay Card
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
