product image

Part #: 1233-F-2191-10

Model: SDR

OEM:

Satcom Direct

Part Number :
Image result for satcom direct logo

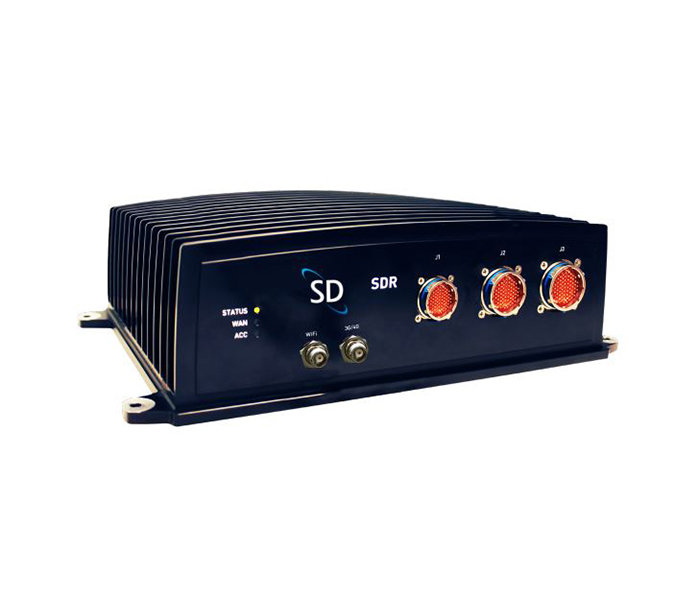

SDR
FEATURES
  • The SDR is a connectivity platform that optimizes the onboard internet experience, enabling laptops, tablets and smartphones to do their jobs to maintain productivity at every altitude
  • Global One IP, available only on the SDR Series, delivers a smooth transition between satellite networks, and continuous software updates—always included—mean the latest technological advancements are available
  • Providing asecure and reliable wireless connection, passengers can make and receive calls, text, email, connect to the internet and stream video
  • The advanced SDR technology automatically selects the best connection available—on the ground or in the air—always keeping you connected
  • It offers acceleration, Geo-Referencing and a fully integratedPBX for both wired and wireless voice capabilities
  • The SDR interfaces with onboard avionics allowing it to extract operational data from the airplane, such as telemetry and position data, providing useful aircraft performance information
  • Supports all satellite-based connections (L-band, Ka, Ku, X) and ATG
  • Talk, text, email, browse or stream
  • Office in the sky experience
  • Cellular data
  • VoIP calling
  • • Satellite ready solution for L-Band, Ku-Band, Ka-Band, X-Band, and ATG communications
  • Gigabit Ethernet Support for WAN, LAN and cabin connectivity
  • 802.11n Dual-Band (2.4 + 5.0 GHz) WiFi
  • ISDN Support
  • Cellular Data Capable with 3G data support for Internet access on the ground and remote support
  • Multiple WiFi network support allows for separate guest and/or VIP networks
  • ARINC 429 interfaces for location services, flight tracking/moving maps, and/or avionics monitoring
  • Customizable Discrete I/O Support
  • Mounting provision: Flange



Part Number Description
1233-F-2191-10 Satcom Direct Router





1233-F-2191-10
- Router
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
