Seaton |
Desc: |

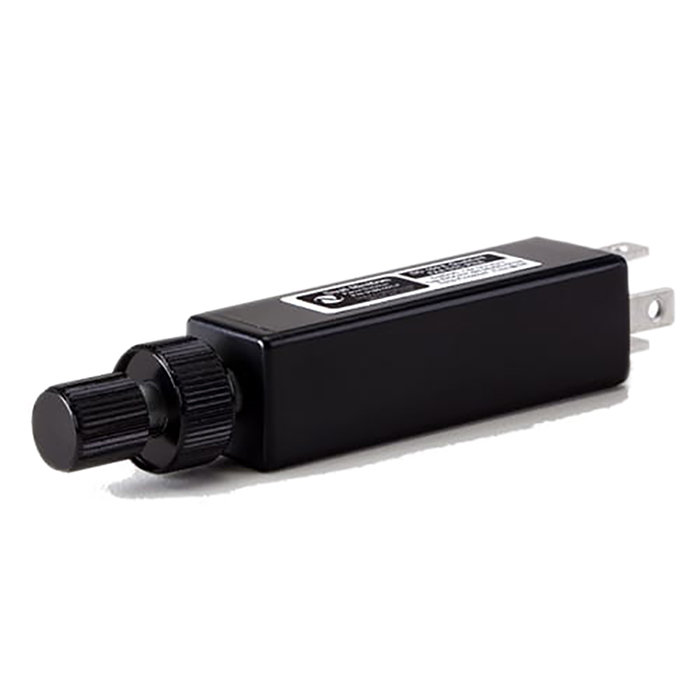

MiniDim Dimmer Control Unit |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
Dual channel MaxDim Mini PWM dimmer with ring terminals
Controls incandescent, LED, and electroluminescent lighting
Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
Approved as AMOC for Cessna AD 93-24-15
Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
STC/PMA approved
RTCA/DO-160E Section 21 RFE Qualified
Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knobs
Made in the USA
One year limited warranty
SPECIFICATIONS
voltage range: | 12 to 35 VDC | Weight: | 1 once (28g) |
Temperature Range: | (Storage) -40° to +100°C | MAXIMUM Current: | 10 A per Channel |
output channels: | 2 | internal temp protected: | +85°C |
INTERNAL TEMP: | +25 C at 10 A | DO-160E TESTING: | SEC. 21: RFE (EMI) |
Part Number: | Description: |
---|---|
9200-001-f | Dual dimmer/RingTerminal |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
