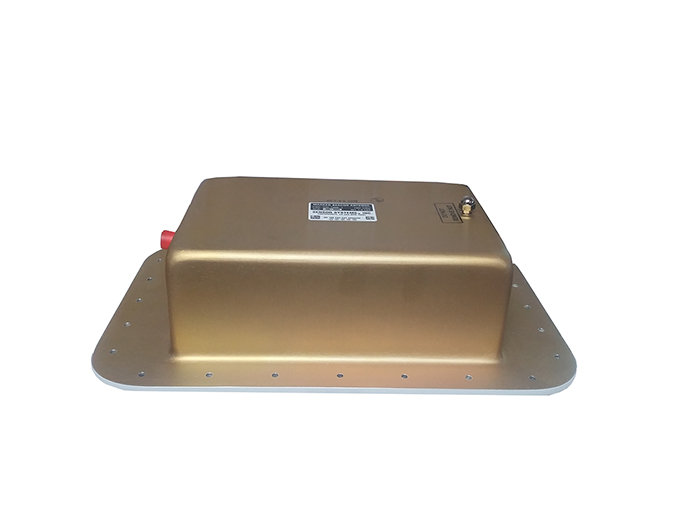

Picture of product S35-2000-1

Part #: S35-2000-1

NSN:

5985-00-538-0741

OEM:

Sensor Systems

Desc:

Marker Beacon Antenna

Part Number :


S35-2000-1
FEATURES
  • Marker Beacon Antenna
  • Highly reliable, flush mounted, one-piece drawn aluminum can
  • Foam filed, epoxy glass radome
  • Hermetically sealed
  • DC grounded radiating element enables antenna to withstand lightning strike
  • Electrical characteristics similar to a short horizontal dipole, providing VSWR and radiation patterns per MIL-A-25367A
  • Ideal for ground clearance requirements and zero drag
  • Interchangeable with AT-536/ARN-type antennas
  • Boeing 747
  • NSN: 5826-00-538-0741
  • S35-1000/-2000 series certification: FAA TSO C35c, DO-160, BAC D-16046, MIL-A-5999, MIL-A-9094, MIL-A-25367, MIL-B-5087, MIL-C-5541, MIL-E-5400



SPECIFICATIONS
Frequency: 75 MHz VSWR:  1.5:1 @ 75 MHz, 5.0:1 @ 75 ± .15 MHz
Pattern: single downward lobe Polarization: linear (major axis)
Impedance: 50 ohms Power: Receive Only
Lightning Protection:  DC Grounded Weight: 2.25 lbs
Height: flush Material: AT356-T61 / 6061 aluminum/glass radome
Finish: Skydrol Resistant Enamel Connector: BNC
Drag: flush. Temperature: -85°F to +165°F
Vibration: 10G's Altitude: 70,000 ft.





Part Number Marker Beacon Antenna Description:
S35-2000-1 Basic version, see details above



S35-2000-1
- Marker Beacon Antenna

NSN: 5985-00-538-0741

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
