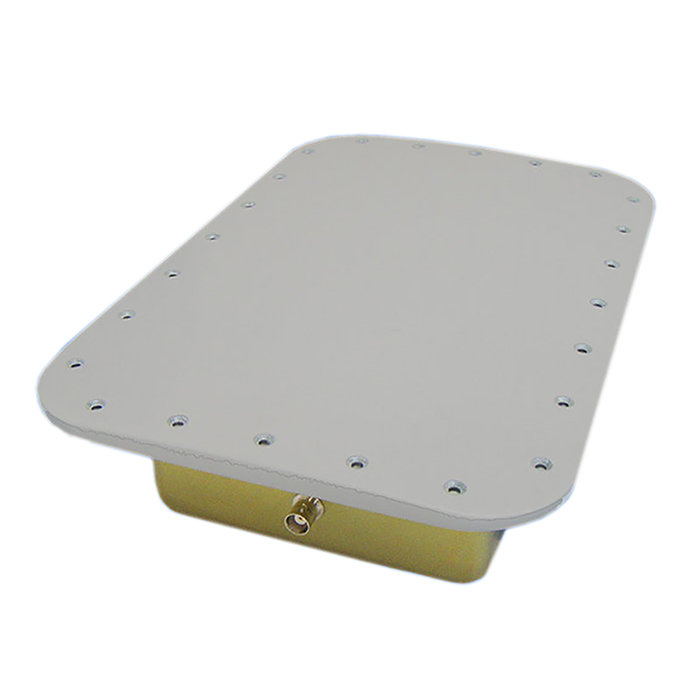

Picture of product S35-2000-10

Part #: S35-2000-10

OEM:

Sensor Systems

Desc:

Marker Beacon Antenna

Part Number :


S35-2000-10



FEATURES

  • Flush-mounted Marker Beacon Antenna designed for aircraft frames with 49-inch radius
  • Hermetically-sealed construction consisting of a foam-filled
  • One-piece drawn aluminum can with a fiberglass radome
  • The radiating element is DC-grounded to withstand lightning strikes
  • Federal & Military Specs: FAA TSO C35c, DO-108



SPECIFICATIONS

Frequency: 75 MHz VSWR:  ≤ 1.5:1 @ 75, ≤5.0:1 @ 75±0.15 MHz
lIGHTNING: DC Grounded pattern: Single Downward lobe
polarization: Linear (Major Axis) LENGTH:  11.75 Inches
width: 7.75 Inches Weight: 1.9 oz
finish: Skydrol-Resitant Polyurethane Enamel Material:  Aluminum Alloy Cavity/Fiberglass
connector: BNC Female vibration: ±10 G's
Altitude: 70,000 ft. Temperature: -55° C(-67°F) to +71°C(+160°F)
Impedance: 50 Ohms
Part Number: Description:
S35-2000-10 Marker Beacon Antenna



X
X
X
S35-2000-10
- Marker Beacon Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
