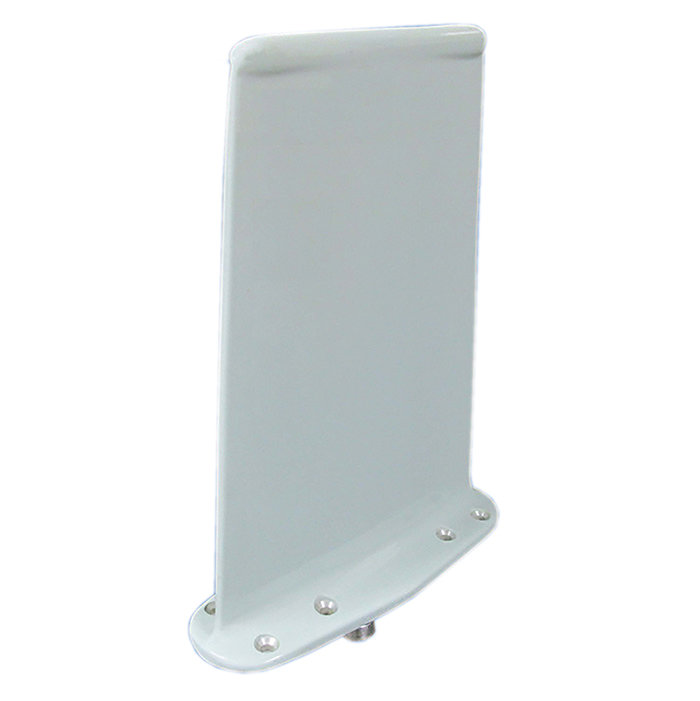

Picture of product S65-1024

Part #: S65-1024

NSN:

5985-01-024-9204

OEM:

Sensor Systems

Desc:

UHF Antenna (Receive Only)

Part Number :



FEATURES
  • High-powered UHF, receive-only antenna
  • Constructed from aluminum casting
  • Maximum sideloading effect
  • Resistant to extreme temperatures
  • Hermetically sealed and highly resistant to erosion
  • Compatible with AWACS UHF communications
  • FEDERAL & MILITARY: FAA TSO-C129, DO-160C, MIL-DTL-5541, MIL-E-5400, and MIL-STD-810





SPECIFICATIONS
Frequency: 225-400 MHz VSWR:  ≤ 2.0:1
Pattern: 360°Azimuth/± 15°Elevation Polarization: Vertical ± 15°
Impedance: 50 ohms emp Protection: Yes
gain Antenna:  ≥ 0 dBi (Avg. to ± 15°), 7 dB (min gain w/in 7 dB of avg. or med) Weight: 2.5 lbs.
height: 8.92 in. Material: A356-T6 aluminum Casting
Finish: Polyurethane Enamel Connector: SC Female
efficiency: >85% Temperature: -55°C (-67°F to +158°F ) +70°C
ROLL OFF 60 dB/decade (below 225 MHz) Altitude: 50,000 ft.
length: 6.75 in.



Part Number: Description:
S65-1024 UHF Antenna (Receive Only)



X
X
X
S65-1024
- UHF Antenna (Receive Only)

NSN: 5985-01-024-9204

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
