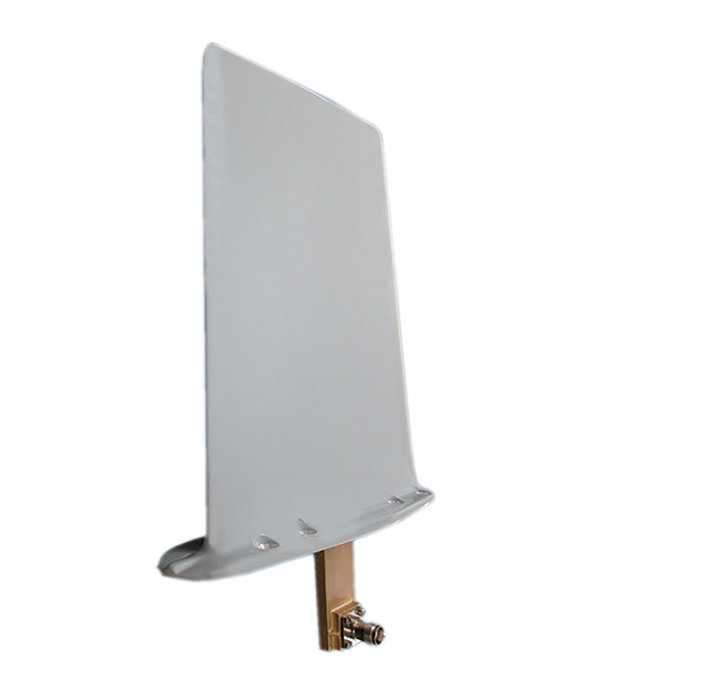

Picture of product S65-1200

Part #: S65-1200

NSN:

5985-01-024-4265

OEM:

Sensor Systems

Desc:

X-Band Antenna

Part Number :


S65-1200



FEATURES

  • Designed for X-Band transponder use for high-gain patterns on the horizon
  • All metal, dip-brazed construction provides DC grounding for lightning protection
  • Coax to waveguide connector offers high-power capability
  • Waveguide and connector are hermetically sealed
  • AWACS transponder



SPECIFICATIONS
Frequency: 8800 - 9500 MHz VSWR:  ≤ 1.5:1 (9150-9500 MHz) ≤ 2.5:1 (8800 - 9500 MHz)
Pattern: ± 10 Vertical Polarization: Horizontal
Impedance: 50 ohms directivity: 7 dB above isotropic reference min.
HEIGHT:  8.9 in. Weight: 2.0 lbs. max
power: 400 Watts Peak Material: Aluminum Alloy
Finish: Polyurethane  Connector: TNC Female
Side Load: 12 PSI Temperature: -55°C (-67°F to +160°F ) +71°C
Vibration: 14G's Altitude: 55,000 ft.
lightning power: DC Grounded



Part Number: Description:
S65-1200 X-Band Antenna
