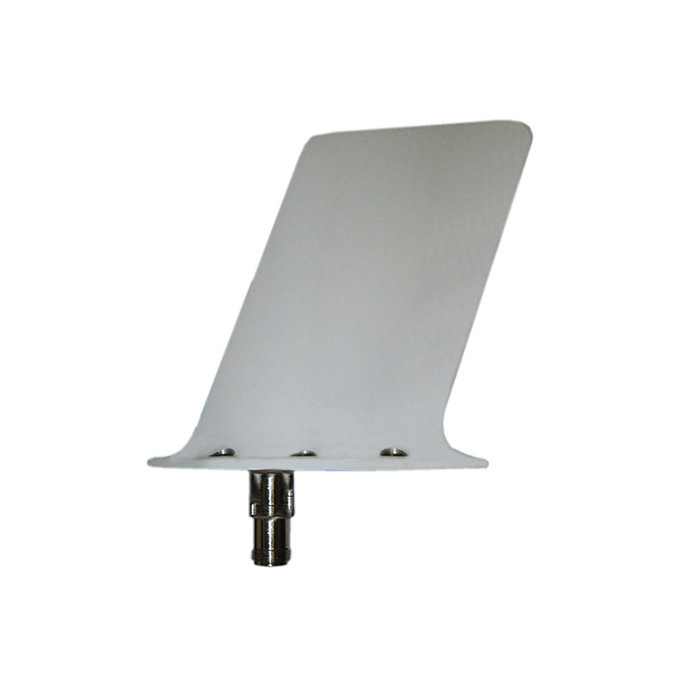

Picture of product S65-1217
Part #: S65-1217
Model: S65-1217
Desc: UHF Antenna
OEM: Sensor Systems
NSN: 5985-00-034-2320
Sched-B: 8529109000
ECCN: 7A994
Cage Code: 13691
Part Number :



S65-1217

FEATURES

  • Vertically polarized
  • Swept-back UHF blade
  • Conforms to AT-896/A specs
  • Designed for military command systems frequencies of 350-450 MHz
  • High strength aluminum die casting
  • Intended for speeds up to March. 2.0 with low drag
  •  DC grounded to provide lightning protection
  • Connector is forward mounted. Six-hole bolt pattern
  • Hermetically sealed
  • FEDERAL & MILITARY SPECS: MIL-A-27164, MIL-E-5400, MIL-STD-810B, AT-896/A



SPECIFICATIONS
Frequency: 390-450 MHz VSWR:  ≤ 2.0:1 (390-450 MHz) ≤ 1.7:1 (402-420 MHz)
Pattern: 1/4 Wave Monopole  Polarization: Vertical
Impedance: 50 ohms Power: Mach .85 @ 35,000 ft. = 0.6 lbs
HEIGHT:  5.31 in. Weight: 11 oz.
power: 100 Watts Average Material: A380 Aluminum Casting
Finish: Skydrol Resistant Enamel Connector: N Female
Altitude: 55,000 ft. Temperature: -54°C (-65°F to +185°F ) +85°C
lightning power: DC Grounded



Part Number: Description:
S65-1217 UHF Antenna



X
X
X
S65-1217
- UHF Antenna

NSN: 5985-00-034-2320

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$1,650.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
