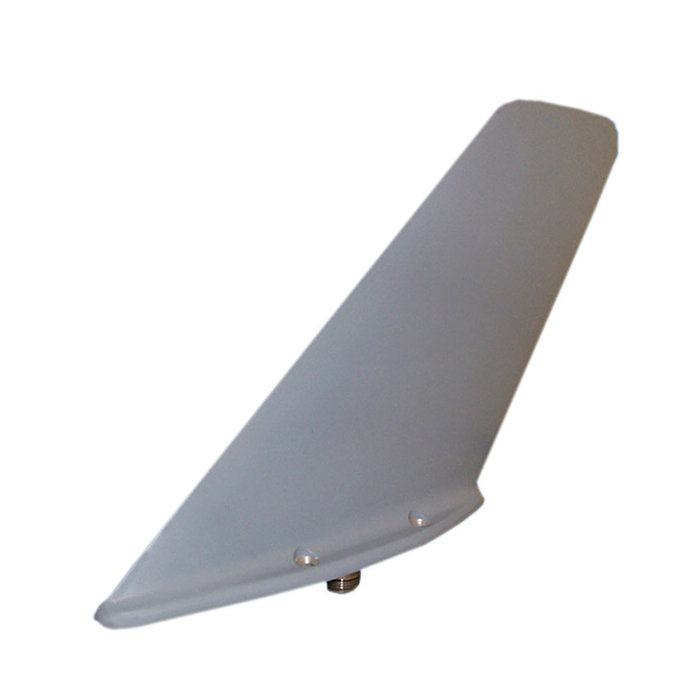

Picture of product S65-1227
Part #: S65-1227
Model: S65-1227
Desc: UHF Antenna
OEM: Sensor Systems
NSN: 5985-01-296-5790
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :



S65-1227

FEATURES

  • UHF antenna
  • All metal design
  • DC grounded to provide lightning protection
  • Provides high degree of structural rigidity and protection from rain, erosion and sand/gravel abrasion
  • For high-speed military aircraft
  • Bolt pattern same as AT-840 military UHF
  • Federal & Military Specs: MIL-STD-810, MIL-E-5400, MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 225-420 MHz VSWR: 2.3:1
Polarization: Vertical Pattern: 1/4 wave monopole
Impedance: 50 ohms Power: 100 watts
Lightning Protection: DC grounded Weight: 21 oz.
Height: 7.5 in. Material: A356-T61 aluminum casting
Finish: Skydrol resistant enamel Connector: N
Drag: 0.6 lbs. Mach .85 @ 35,000 ft. Side Load: 12 psi
Temperature: -65°F to +203°F Vibration: 35 G's
Altitude: 70,000 ft.

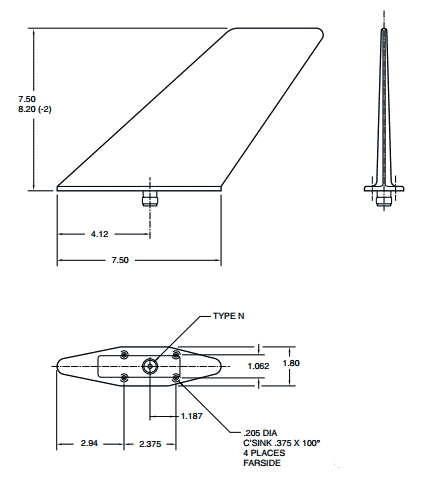

S67-1575-137 Diagram



Part Number: Description:
S65-1227 UHF Antenna



Serial # 871
Condition SV
Mods -
Tag Date 11/19/24
Shop Avionics Specialist Inc.
Warranty 6 Months
Serial # 1686
Condition NEW
Mods None
Tag Date 04/28/22
Shop Sensor Systems
Warranty 1 Year
S65-1227
- UHF Antenna

NSN: 5985-01-296-5790

Price Condition Status
$4,795.00 NEW OUTRIGHT 1 IN STOCK
$3,150.00 SV OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
