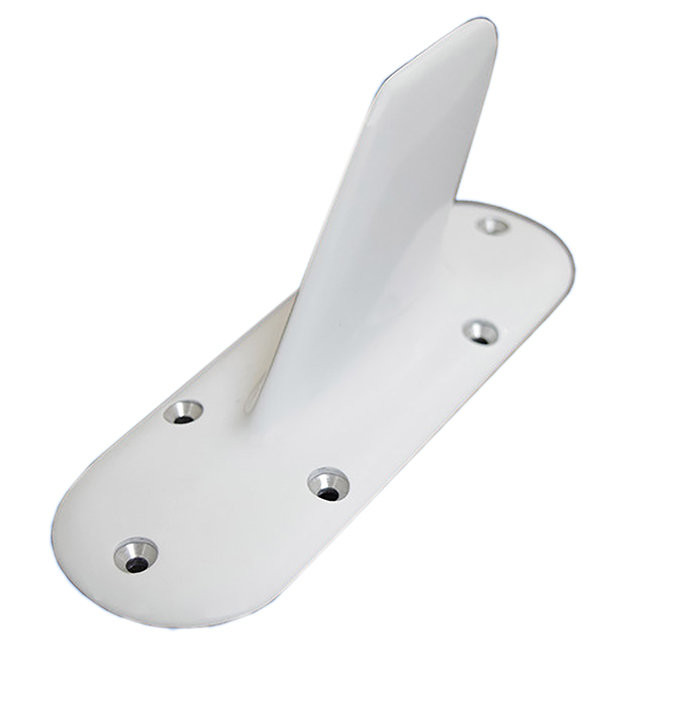

Picture of product S65-5366-10L
Part #: S65-5366-10L
Model: S65-5366-10L
Desc: L-Band Antenna
OEM: Sensor Systems
NSN: 5985-01-248-9438
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :


S65-5366-Series



FEATURES

  • L-Band Antenna
  • Rugged, high-efficiency, all metal aluminum casting
  • DC grounded
  • Hermetically sealed
  • For use with transponder, DME, ATC, IFF & Mode S application
  • For commercial, military & general aviation aircraft
  • Federal & Military Specs: FAA TSO C66b, C74c, and C112. MIL-STD-810, MIL-E-5400, MIL-A-25708, MIL-A-25730, MIL-A-9904, MIL-B-5087, MIL-A-7772



SPECIFICATIONS
Frequency: 960-1220 MHz VSWR:  1.4:1 (1000-1100) 1.7:1 (960-1220)
Pattern: Omni/Az Cos/El Polarization: Vertical
Impedance: 50 ohms Power: 4000 w/pk 250 w/cont
Lightning Protection:  DC Grounded Weight: 4 oz
Height: 2.2" Material: A356-T61 aluminum casting
Finish: Skydrol Resistant Enamel Connector: See chart below
Drag: 1 oz Mach .85 @ 35,000 ft. Temperature: -65°F to +185°F
Vibration: 10G's Altitude: 70,000 ft.

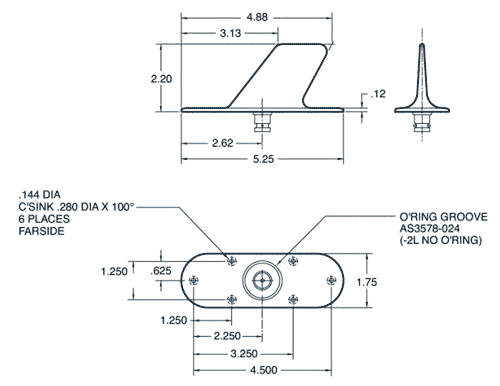

S65-5366-10L Diagram



Part Number: Description:
S65-5366-2L Same as -7L, HN Connector, L-Band Antenna
S65-5366-3L Same as -7L, except for TNC connector & no O'Ring
S65-5366-7L Basic Version, C Connector, L-Band Antenna
S65-5366-8L Same as -7L, except for stainless steel casting & 8oz weight, C Connector, L-Band Antenna
S65-5366-10L Same as -7L, N Connector, L-Band Antenna
S65-5366-10LC Same as -7L, C Connector, L-Band Antenna
S65-5366-11L Same as -7L, N Connector, L-Band Antenna
S65-5366-116L Same as -7L, except for stainless steel casting & 8oz weight, N Connector, L-Band Antenna
S65-5366-119L Same as -7L, except for stainless steel casting & 8oz weight, N Connector, L-Band Antenna



Serial # 185-23446
Condition NEW
Mods None
Tag Date 03/09/26
Shop Textron Aviation
Warranty 1 Year
Serial # 185-23722
Condition NEW
Mods None
Tag Date 03/09/26
Shop Textron Aviation
Warranty 1 Year
S65-5366-10L
- L-Band Antenna

NSN: 5985-01-248-9438

Price Condition Status
$1,650.00 NEW OUTRIGHT 2 IN STOCK
