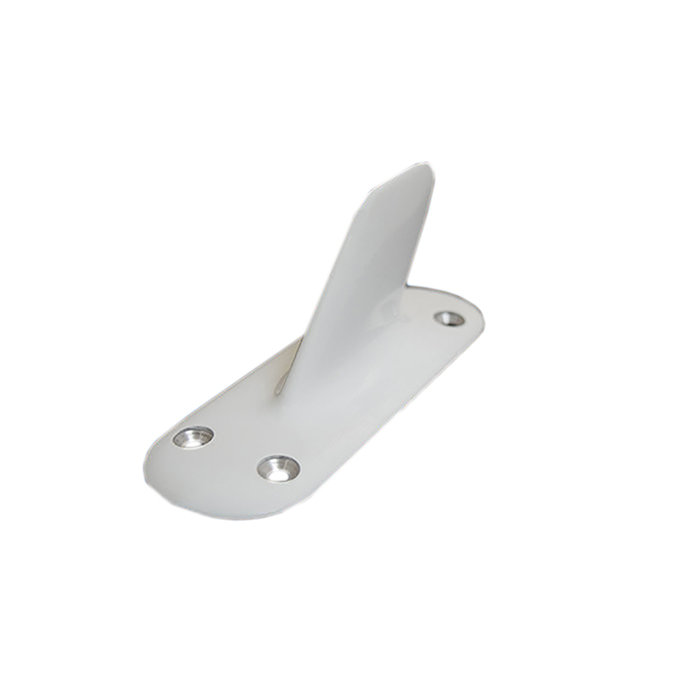

Picture of product S65-5366-11L
Part #: S65-5366-11L
Model: S65-5366-11L
Desc: L-Band Antenna Same as -7L, N Connector
OEM: Sensor Systems
NSN: 5985-01-195-3041
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :


S65-5366-11L



FEATURES

  • L-Band Antenna
  • Rugged, high-efficiency, all metal aluminum casting
  • DC grounded
  • Hermetically sealed
  • For use with transponder, DME, ATC, IFF & Mode S application
  • For commercial, military & general aviation aircraft
  • Federal & Military Specs: FAA TSO C66b, C74c, and C112. MIL-STD-810, MIL-E-5400, MIL-A-25708, MIL-A-25730, MIL-A-9904, MIL-B-5087, MIL-A-7772



SPECIFICATIONS
Frequency: 960-1220 MHz VSWR:  1.4:1 (1000-1100) 1.7:1 (960-1220)
Pattern: Omni/Az Cos/El Polarization: Vertical
Impedance: 50 ohms Power: 4000 w/pk 250 w/cont
Lightning Protection:  DC Grounded Weight: 4 oz
Height: 2.2" Material: A356-T61 aluminum casting
Finish: Skydrol Resistant Enamel Connector: See chart below
Drag: 1 oz Mach .85 @ 35,000 ft. Temperature: -65°F to +185°F
Vibration: 10G's Altitude: 70,000 ft.
Part Number: Description:
S65-5366-11L L-Band Antenna, Same as -7L, N Connector



S65-5366-11L
- L-Band Antenna

NSN: 5985-01-195-3041

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
