Part #: S65-5366-71S
Model: S65-5366-71S

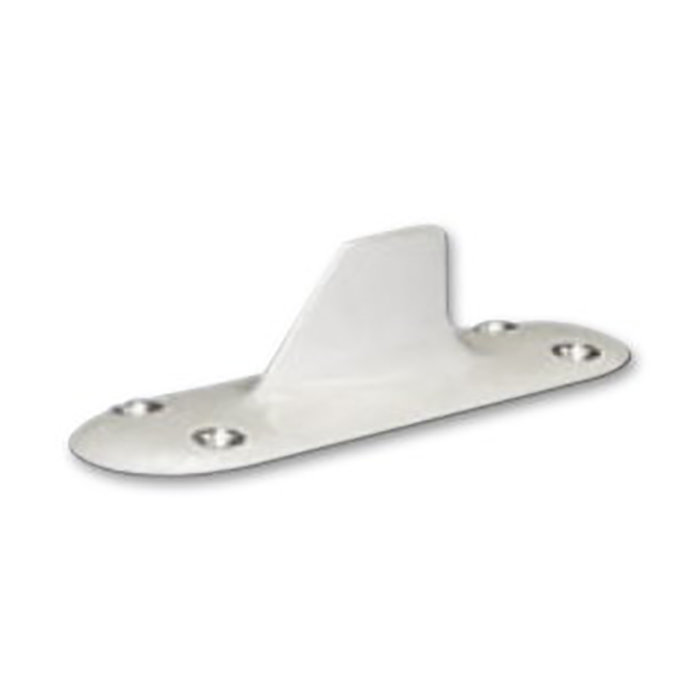

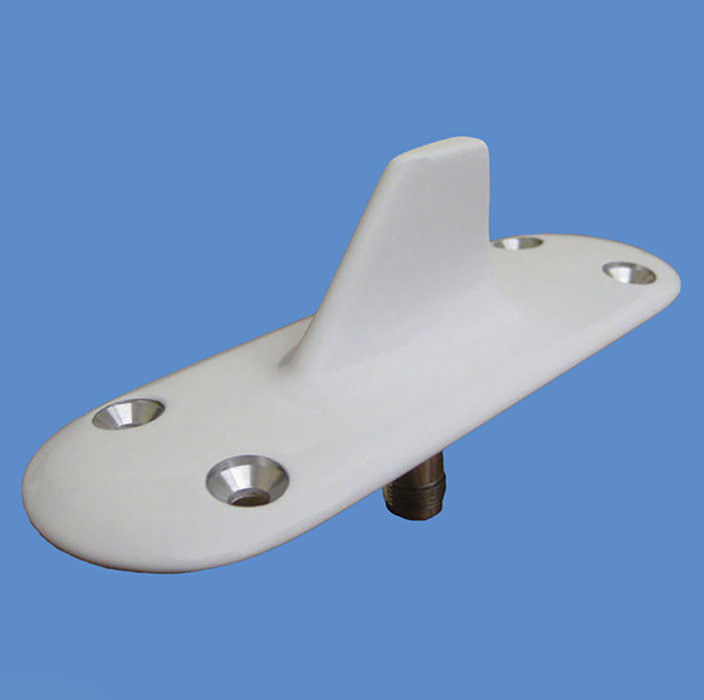

Desc: S-Band Telemetry Antenna
OEM: Sensor Systems
NSN: 5985-01-609-2799
Sched-B: 8529906100
ECCN: 7A994
Cage Code: 13691
Part Number :


S65-5366-71S



FEATURES

  • S-Band Telemetry Antenna
  • Aluminum blade
  • Spread spectrum local area network communication utilizing IEEE 801.11
  • Common 4 hole base plate design
  • Federal & Military Specs: MIL-STD-810, MIL-E-5400, MIL-A-7772, MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 2.2-2.5 GHz  VSWR: 2.0:1
Pattern: Omni-Directional Polarization: Vertical
Impedance: 50 ohms  Power: 1000 w/pk
Lightning Protection: DC grounded  Weight: 3 oz
Height: 1.3 in Material: A-356 Aluminum Alloy
Finish: Skydrol resistant enamel  Connector: TNC
Temperature: -65°F to +185°F Vibration: 10 G's
Altitude:  70,000 ft
Part Number: Description:
S65-5366-71S S-Band Telemetry Antenna
S65-5366-72S Same as above except 5.25-5.875 GHz



X
S65-5366-71S
- S-Band Telemetry Antenna

NSN: 5985-01-609-2799

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
