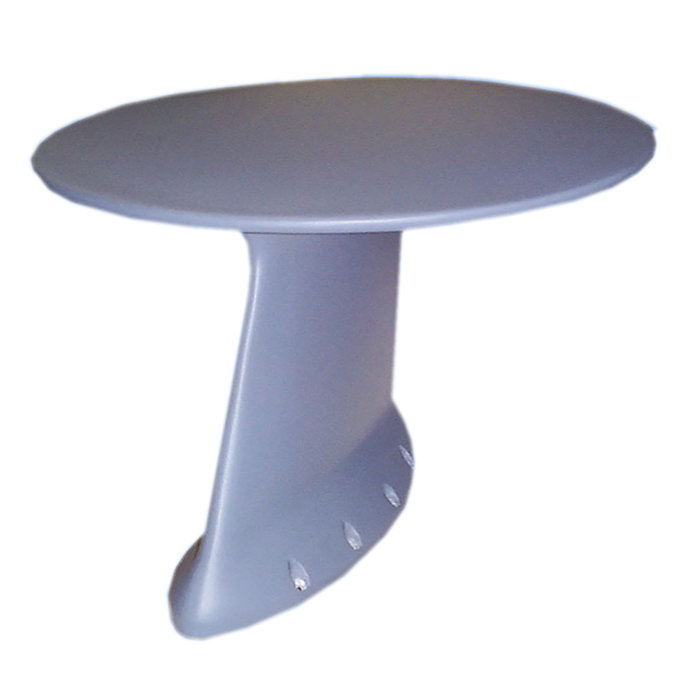

Picture of product S65-8282-336

Part #: S65-8282-336

NSN:

5985-01-606-4488

OEM:

Sensor Systems

Desc:

UHF Satcom Antenna

Part Number :



S65-8282-336


FEATURES
  • This UHF Satellite Communication antenna provides three frunctions from a single low-profile antenna footprint
  • The traditional low-angle, vertically-polarized blade can be used for air-to-air and air-to-ground communications
  • High-angle RHCP element is designed for UHF Satcom
  • The broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith
  • An L1/L2 GPS antenna is housed in the radome to provide GPS function on the third output connector
  • Commercial and Military application: Federal & Military Specs, MIL-STD-810, MIL-STD-877





SPECIFICATIONS

Frequency: UHF (HighAngle): 240-400MHz UHF (LowAngle): 225-400MHz GPS (L1): 1565-1586MHz GPS (L2): 1217-1238MHz VSWR:  UHF (HighAngleandLowAngle): ≤2.0:1 GPSL1 and L2:≤2.0:1
Pattern: UHF(HighAngle): Cardioid Hemispheric RHCP UHF (LowAngle): Ominidirectional in Azimuth UHF (LowAngle): Cosinusoidal in Elevation Polarization: UHF (HighAngle):  RHCP UHF (LowAngle): Vertical GPS: RHCP
Impedance: 50 ohms Nominal Power: UHF:200wattscontinuous GPS:1watt
Lightning Protection:  DC Grounded Weight: 9.6lbs.
height: 10.25 in Material: 6061-T6 Aluminum Alloy/Fiberglass
Finish: Skydrol Resistant Polyurethane Enamel Connector: UHF: N Female (x2) / GPS: TNC Female
length: 17.56 in. width: 16.0 in.
Temperature: -61°C(-77°F)to+85°C(+185°F) shock: 20g’s
Altitude: -1800 to 50,000 ft. gain: UHF (HighAngle): +3dBicmin, +7dBicpeak@ Zenith UHF (LowAngle): 0dBilmin@ Horizon,  +2dBil@ Peak GPS: +3dBic@ Zenith







Part Number: Description:
S65-8282-336 UHF/GPS Satellite Communications Antenna



S65-8282-336
- UHF Satcom Antenna

NSN: 5985-01-606-4488

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
