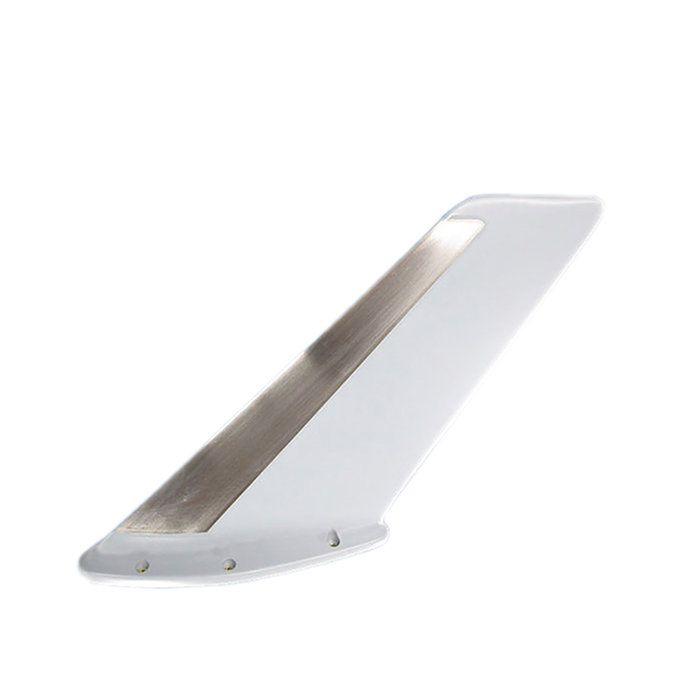

Part #: S65-8282-34

NSN:

5985-01-423-7202

OEM:

Sensor Systems

Desc:

VHF/UHF Antenna (Single Coax)

Part Number :


S65-8282-34



FEATURES

  • VHF/UHF AM/FM Antenna
  • For speeds up to Mach 2.0 with low drag
  • Designed for use with AN/ARC-182 or similar VHF/AM/FM/UHF transmitter at 30-88/108-174/225-400 MHz
  • Provides low VSWR over operating band
  • Six-hole bolt pattern - interchangeable with Collins 37R-2U (single connector)
  • Hermetically sealed
  • Designed for universal mounting
  • Ideal for antenna replacement in existing systems where a dual frequency antenna capable of handling 40 watts is required with single connector
  • Federal & Military Specs: FAA TSO C37b, C38b and C59. MIL-STD-810, MIL-E-5400, MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087



SPECIFICATIONS

Frequency: 30-88 MHz (VHF/FM) 108-174 MHz (VHF/AM) 225-400 MHz (UHF) VSWR: 2.6:1 (VHF/FM) 2.3:1 (VHF/AM & UHF)
Pattern: Omni/Az, Cos/El Polarization: Vertical
Impedance: 50ohms Power: 40 watts (VHF AM/FM) 100 watts (UHF)
Lightning Protection: DC Grounded  Weight: 2.5 lbs
Height: 11.85" Material: St. Steel / AL-A356-T61 / glass
Finish: Skydrol Resistant Enamel  Connector: TNC (-34, -51) / TNC Right Angle (-50)
Drag: 1.0 lb Mach .85 @ 35,000 ft  Side Load: 6 PSI
Temperature:  -65°F to +160°F  Vibration:  10 G's
Altitude:  60,000 ft

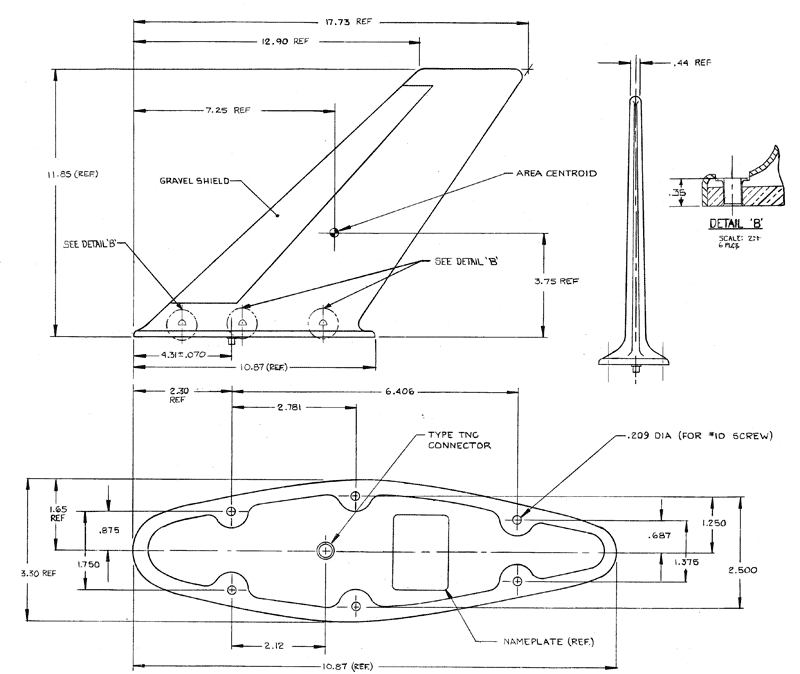

S65-8282-34 Footprint.gif
Part Number: Description:
S65-8282-34 VHF/UHF Antenna (Single Coax)
S65-8282-50 VHF/UHF Antenna, with right angle TNC connector and 15" pigtail. Fits F-5
S65-8282-51  VHF/UHF Antenna, with 100 watt power



S65-8282-34
- VHF/UHF Antenna (Single Coax)

NSN: 5985-01-423-7202

Price Condition Status
$4,995.00 NEW OUTRIGHT REQUEST LEAD TIME
$3,150.00 SV OUTRIGHT REQUEST LEAD TIME
