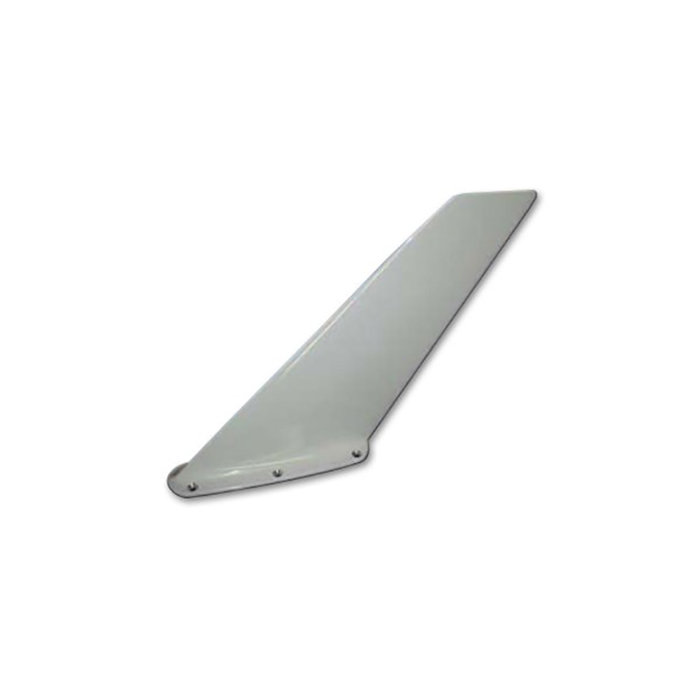

Picture of product S65-8282-406

Part #: S65-8282-406

NSN:

5985-01-570-3767

OEM:

Sensor Systems

Desc:

ELT Antenna

Part Number :


S67-8282-406
FEATURES
  • ELT Antenna
  • Covers frequencies of 121.5 MHz, 243.0 MHz, and the digital satellite-aided tracking frequency 406.0 MHz
  • Compatible with Cospas-Sarsat and all ELT systems
  • Meets Requirements of EUROCAE ED-62 for ELT equipment
  • Composite Construction



SPECIFICATIONS
Frequency: 121.5 MHz 243.0 MHz 406.0 MHz VSWR: 2.0:1 (121.5 MHz) 2.3:1 (243.0 MHz) 1.5:1 (406.0 MHz)
Pattern: Omni/Az Cos/El  Polarization: Vertical
Impedance: 50 ohms  Power: 250 mW (121.5 and 243.0 MHz) 5 watts (406.0 MHz)
Lightning Protection: DC grounded  Weight: 1.6 lbs Max
Height: 9.8"  Material: 6061-T6 aluminum / glass
Finish: Skydrol resistant enamel  Connector: BNC
Drag: 0.6 lbs Mach .85 @ 35,000 ft  Side Load: 12 psi
Temperature: -65°F to +185°F  Vibration:  10 G's
Altitude:  70,000 ft
S658282406 Diagram
Part NumberRadio Altimeter Antenna Description:
S65-8282-406 see details above



S65-8282-406
- ELT Antenna

NSN: 5985-01-570-3767

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

COSPAS is an acronym for the Russian words "Cosmicheskaya Sistema Poiska Avariynyh Sudov" . These Russian words translate to "Space System for the Search of Vessels in Distress".
SARSAT is an acronym for "Search And Rescue Satellite-Aided Tracking". The SARSAT system was developed as a joint effort by the USA, Canada, and France.
