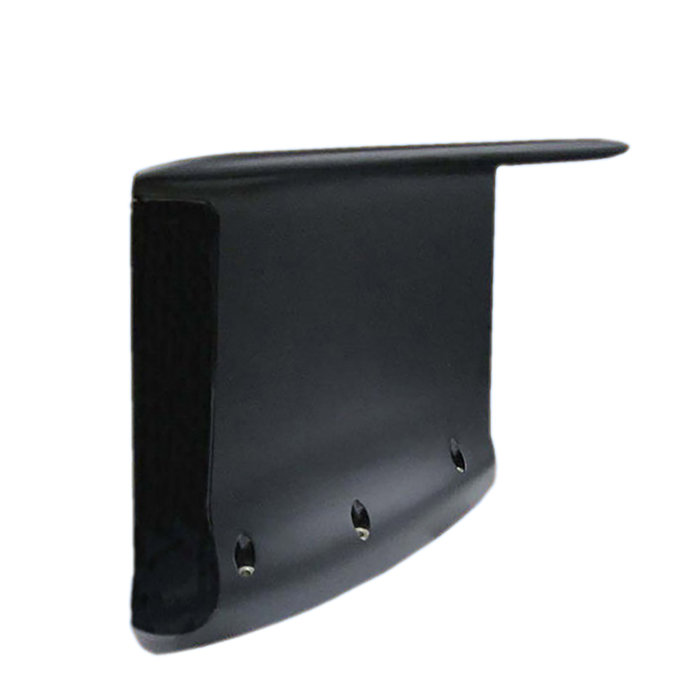

Picture of product S65-8282-831

Part #: S65-8282-831

NSN:

5985-01-598-5646

OEM:

Sensor Systems

Desc:

VHF/UHF AM/FM Antenna

Part Number :

  S65-8282-831

 DESCRIPTION

  • Representing current state-of-the-art in digitally-tuned antenna technology, the S65-8282-831 provides high-gain VHF/UHF performance
  • Frequency tuning is accomplished using solid-state microprocessor technology with switching speeds less than 50 microseconds, supporting secure, frequency-hopping ovice communication systems
  • The S65-8282-831 is tunable from 30 MHz to 512 MHz and has four to ten times more gain (in both transmit and receive) in the crucial 30-88 MHz frequency band, than comparative passive antennas
  • The aerodynamic composite blade of the antenna houses a microprocessor-based logic controller, RF tuning circuitry and DC switching power supply resulting in a single antenna package
  • The antenna operates on a standard 28 VDC power source. The antenna is less than 10 iinches tall, making it ideal for applications with severe mounting concerns
  • Frequency setting information is transmitted directly to the antenna from the radio via a multi-pin connector. Tuning of the inductor circuits is achieved by the logic controller via PIN diodes
  • The antenna is compatible with Collins ARC-210, Raytheon ARC-231 and Rhodes & Schwartz M3AR 6000 radios. NSN: 5985-01-598-5646
  • FEDERAL & MILITARY SPECS: MIL-HDBK-5400, MIL-STD-810
SPECIFICATIONS

Frequency:  30-88 MHz (VHF/FM) 108-174 MHz (VHF/AM) 225-512 MHz (UHF) VSWR: 1.3:1-1.9:1 (VHF/FM)
Pattern: Omni/AZ; Cos/EL Polarization: Vertical
Impedance: 50 Ohms rf Power: 25 Watts
DC POWER: +28 VDC, 0.8 Amps weight 4 lbs.
Height: 9.60 in Material: 6061-T6 Aluminum/Teflon Glass
Finish: Skydrol resistant enamel rf Connector: TNC Female
Drag: Mach .85 @ 35,000 ft. = 2.0 lbs. dC Connector: MS27505E11A35P
Temperature: -40 C (-40 F) to +90 C (+194 F) Shock: 15 G's
ALTITUDE: 55,000 ft. SIDE LOAD: 9 PSI
SWITCHING SPEED: <50 µS VIBRATION: 10 G's
WIDTH: 3.25 in.



S65-8282-831
- VHF/UHF AM/FM Antenna

NSN: 5985-01-598-5646
