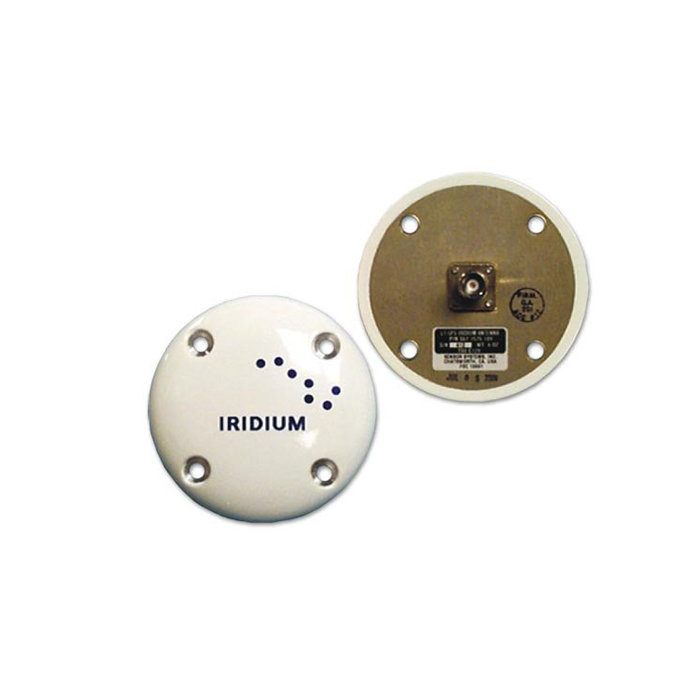

Picture of product S67-1575-109
Part #: S67-1575-109
Model: S67-1575-109
Desc: GPS/Iridium Antenna
OEM: Sensor Systems
NSN: 5985-01-507-4547
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :



S67-1575-109
FEATURES
  • Iridium / GPS Antenna
  • Covers the frequency range from 1565 MHz to 1626.5 MHz for Iridium operation and GPS L1 applications
  • Low-profile, molded radomes material and design
  • Insures superior protection against rain, ice and lightning strikes
  • DC-grounded and hermetically sealed
  • Qualified for high-speed military aircraft and ARINC applications
  • Is approved as Iridium Compatible Equipment (ICE)
  • NSN: 5985-01-507-4547
  • Federal & Military Specs: AMS-C-5541, DO-160C, TSO-C129, MIL-E-5400, MIL-STD-810



SPECIFICATIONS
Frequency: 1575 ± 10 MHz; 1616-1626.5 MHz VSWR: 1.5:1
Polarization: RHCP Impedance: 50 Ohms
Power: 60 watts CW Gain:  +3 dBic min @ zenith
Lightning Protection: DC Grounded Weight: 6 oz
Dimensions: .66"H x 3.5"D Material: 6061-T6 aluminum / thermoset plastic
Finish: Skydrol-resistant enamel Connector TNC Female
Temperature: -67°F to +185°F

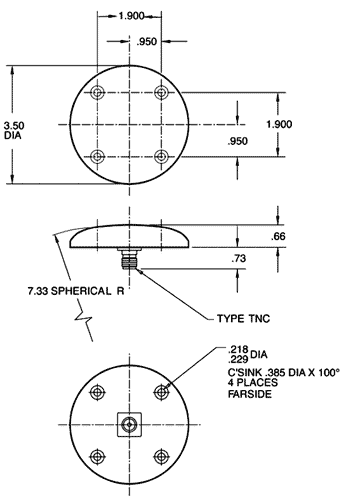

S67-1575-109 Footprint
Part Number: Description:
s67-1575-109 GPS/Iridium Antenna



Serial # 2043
Condition SV
Mods -
Tag Date 08/08/24
Shop Camtronics LLC
Warranty 6 Months
S67-1575-109
- GPS/Iridium Antenna

NSN: 5985-01-507-4547

Price Condition Status
$1,095.00 OH OUTRIGHT 1 IN STOCK
$1,850.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
