Part #: | S67-1575-145 |
---|---|
Model: | S67-1575-145 |

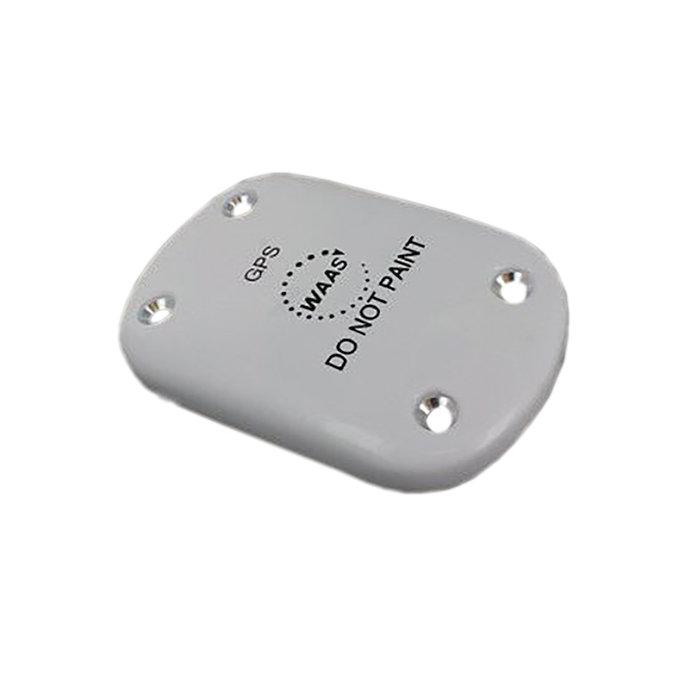

Desc: | GPS Antenna |
OEM: | Sensor Systems |
NSN: | 5985-01-624-4398 |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Cage Code: | 13691 |
Frequency: | 1575.42 ± 10.23 MHz | VSWR: | ≤1.5:1 |
Polarization: | RHCP | Impedance: | 50 ohms |
Axial Ratio: | ≤3.0 dB @ Zenith | Antenna Gain (Typ): | 3 dBic @ Zenith |
Gain Coverage (min): | -1.0 dBic 0°≤ θ ≤ 75° -2.5 dBic 75°< θ ≤ 80° -4.5 dBic 80°< θ ≤ 85° -7.5 dBic θ = 90° @ Horizon | Gain (preamp): | 29.5 ± 3 dB |
G/T: | -31.6 dB/k | Differential Group Delay: | <25nS |
Power Handling: | 1 watt | Voltage: | +4 to +24 VDC |
Current: | <60 mA | Lightning Protection: | DC grounded |

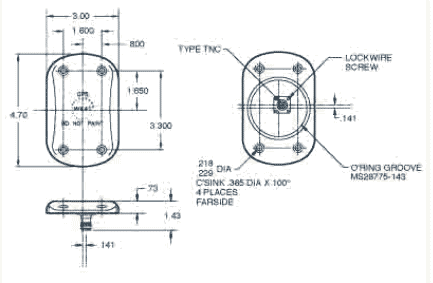

Weight: | 10 oz. | Height: | 0.73 in. |
Width: | 3.0 in. | Length: | 4.70 in. |
Material: | 6061-T6 aluminum / thermoset plastic | Finish: | Skydrol resistant polyurethane enamel |
Connector: | TNC | Temperature: | -67°F to +158°F |
Vibration: | 10 G's | Altitude: | -100 to 55,000 ft. |
Part Number: | Description: |
---|---|
S67-1575-145 | GPS Antenna |
Serial # | 824-12400 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 07/11/24 |
Shop | Sensor Systems |
Warranty | 1 Year |
NSN: 5985-01-624-4398
Price | Condition | Status |
---|---|---|
$1,750.00 | NEW OUTRIGHT | 1 IN STOCK |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
