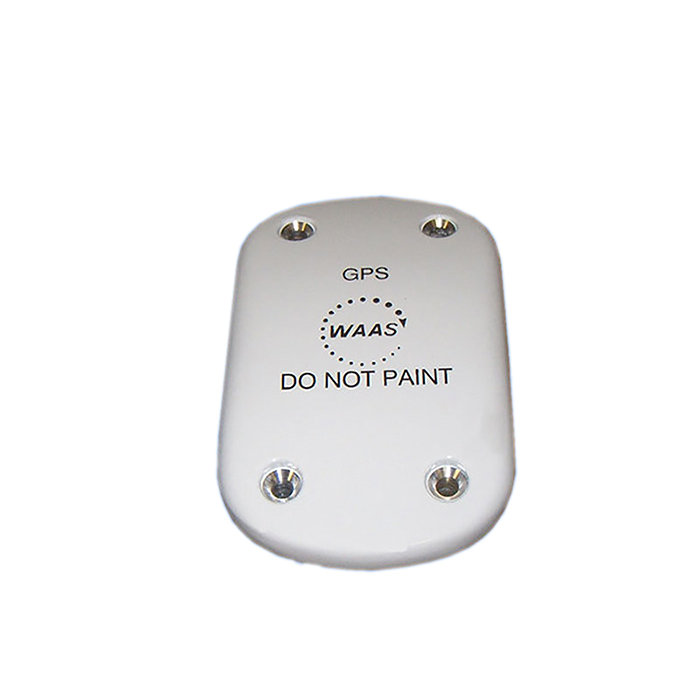

Picture of product S67-1575-146

Part #: S67-1575-146

NSN:

5985-01-693-5654

OEM:

Sensor Systems

Desc:

Antenna WAAS LPV GPS L1

Part Number :


S67-1575-146

FEATURES

  • WAAS LPV GPS L1 antenna with 29.5 dB gain low-noise amplifier in an ARINC 743A configuration
  • Meets HIRF/EMI and TSO C190 requirements for all critical level MMR installations
  • State-of-the-art amplifier that uses advanced technologies to provide high GPS signal levels
  • Extremely low noise operation for fast satellite installation acquisition
  • Amplifier’s complex filtering network rejects adjacent/out of band signals that interfere with the GPS operating frequency
  • Capable of operating with voltages between +4 to +24 VDC, due to the amplifier’s advanced voltage regulator
  • DC bias is provided thru the coaxial connector
  • Advanced radome material provides enhanced protection against rain, ice and lightning strikes
  • Consumes less than 50 mA
  • Antenna is hermetically sealed
  • FEDERAL & MILITARY SPECS: FAA TSO C190, DO-160D/E/G, DO-301, MIL-HDBK-5400, MIL-STD-810D, SAE ARP5416, and ARINC 743A





SPECIFICATIONS

Frequency: 1575.42-10 MHz  VSWR:  ≤ 1.5:1
voltage: +4 to +24 VDC @ 60 mA Max. Polarization: 50 Ohms
Impedance: 50 ohms nominal lightning protection: DC Grounded
AXIAL RATIO: ≤ 3.0 dB @ Zenith Weight: 10 oz.
impedance: RCHP Material: 6061 T6 Aluminum Alloy/Thermoset Plastic
Finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female
Vibration: 10G's Temperature: -55°C (-67°F )to +70° (+158°F )
Altitude: -100 to 55,000 ft. Gain (preamp): 29.5 ± 3 dB



Part Number: Description:
S67-1575-146 Antenna WAAS LPV GPS L1



S67-1575-146
- Antenna WAAS LPV GPS L1

NSN: 5985-01-693-5654
