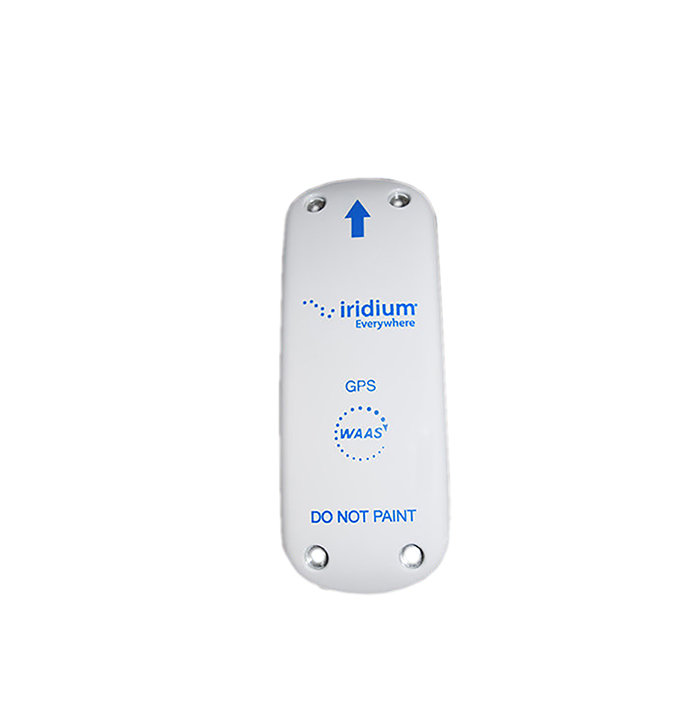

Picture of product S67-1575-160

Part #: S67-1575-160

OEM:

Sensor Systems

Desc:

Iridium/GPS WAAS Antenna

Part Number :


S67-1575-160



FEATURES

  • GPS WAAS LPV / Iridium Antenna
  • Low-profile
  • Dual-band antenna
  • Features a GPS WAAS LPV antenna element and 29.5 dB amplifier combined with a passive Iridium element
  • Simplifies installation when both GPS WAAS LPV & Iridium are utilized
  • Advanced radome design and material provides protection against lightning, rain & ice
  • DC-grounded
  • Hermetically sealed
  • Approved as Iridium Compatible Equipment (ICE)
  • TSO C190 certified
  • Federal & Military Specs: DO-160E, DO-301, MIL-E-5400, MIL-STD-810, TSO C190



SPECIFICATIONS
Frequency: J1: Tx/Rx 1618.0 - 1626.5 MHz J2: Rx 1565.0-1585.0 MHz VSWR: J1: <1.5:1 J2: <1.5:1
Polarization: RHCP Impedance: 50 Ohms
Power: 1 Watt (handling); +4 to +24 VDC (voltage) Gain:  -1.0 dBic 0° ≤ θ ≤ 75°; -2.5 dBic 75° < θ ≤ 80°; -4.5 dBic 80° < θ ≤ 85°; -7.5 dBic θ = 90° @ Horizon; Preamplifier: 29.5 ±3 dB
Lightning Protection: J1 & J2 DC Grounded Weight: 17 oz
Dimensions:

.92" H x 7.86"L x 3"W

Material: 6061-T6 aluminum
Finish: Skydrol-resistant enamel Connector J1 & J2 TNC Female
Temperature: -67°F to +185°F Vibration: 10 G's
Altitude: -100 to 55,000 ft

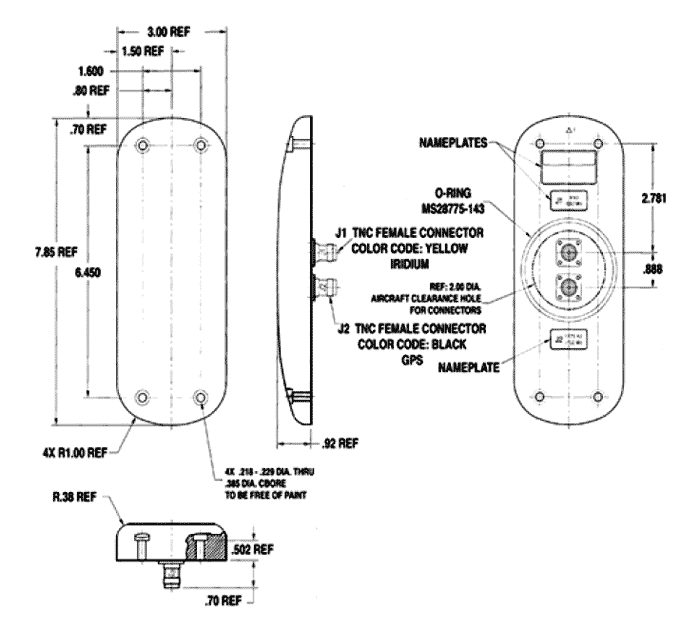

  S67-1575-160 footprint

Part Number: Description:
s67-1575-160 Iridium/GPS WAAS Antenna



1.8"H x 6.25"W
Serial # 838-0222
Condition NEW
Mods -
Tag Date 03/25/22
Shop Sensor Systems
Warranty 1 Year
S67-1575-160
- Iridium/GPS WAAS Antenna
Price Condition Status
$1,725.00 NEW OUTRIGHT 1 IN STOCK
