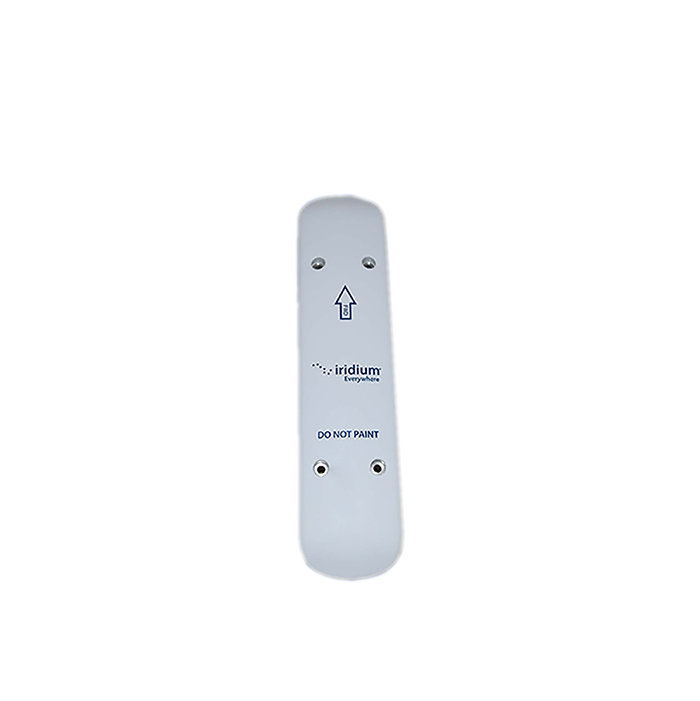

Picture of product S67-1575-165

Part #: S67-1575-165

NSN:

5985-01-641-2892

OEM:

Sensor Systems

Desc:

Dual Element Iridium/GPS Antenna

Part Number :


S67-1575-165



FEATURES

  • Iridium / GPS Antenna
  • Frequency 1565 to 1626.5 MHz
  • GPS L1 applications & Iridium
  • Dual-element allows antenna to be connected to two Iridium devices or an Iridium transceiver and a GPS L1 receiver without using a splitter
  • Low-profile molded radomes
  • Material and construction provides protection against rain, ice and lightning strikes
  • Hermetically sealed
  • DC grounded
  • Qualified for all airframes, including high-speed military aircraft
  • Approved as Iridium Compatible Equipment (ICE)
  • Federal & Military Specs: TSO-C129a, DO-160C, MIL-E-5400, MIL-STD-810, MIL-DTL-5541



SPECIFICATIONS
Frequency: 1565-1626.5 MHz VSWR: 2.0:1
Polarization: RHCP Impedance: 50 Ohms
Power Handling: 60 watts Gain:  +3 dBi
Lightning Protection: DC Grounded Weight: 16.5 oz
Dimensions: 0.82"H x 7.85"L x 3"W  Material: 6061-T6 aluminum
Finish: Skydrol-resistant enamel Connector (2) TNC Female
Temperature: -67°F to +185°F Vibration: 10 G's
Altitude: 55,000 ft

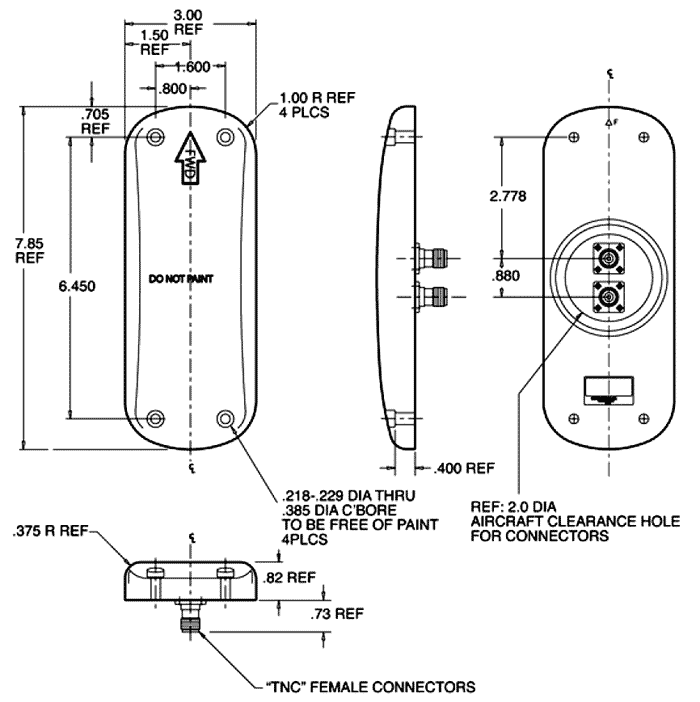

S67-1575-165 footprint

Part Number: Description:
s67-1575-165 Dual Element Iridium/GPS Antenna



1.8"H x 6.25"W
S67-1575-165
- Dual Element Iridium/GPS Antenna

NSN: 5985-01-641-2892
