Part #: S67-1575-20

NSN:

5985-01-451-7424

OEM:

Sensor Systems

Desc:

GPS Antenna

Part Number :


S67-1575-20
FEATURES
  • L1 GPS Antenna
  • Spherical radius molded radome
  • Enhanced protection against rain, ice, and lightning strikes
  • Application for airborne, marine, ground vehicles, and manpack installation
  • Federal & Military Specs: FAA TSO C115a and C129, DO-160, MIL-STD-810, MIL-C-5541, MIL-E-5400



SPECIFICATIONS
Frequency: 1575.42 MHz  VSWR: 1.5:1
Polarization: RHCP Impedance: 50 ohms
Antenna Gain (Typ): 3 dBic @ Zenith  Gain Coverage:  -1.0 dBic   0°  ≤ θ ≤ 75°  -2.5 dBic 75° < θ ≤ 80°  -4.5 dBic 80° < θ ≤ 85°  -7.5 dBic     θ = 90° @ Horizon
Power Handling: 1 watt  Lightning Protection: DC grounded
Weight: 3 oz Dimensions: .40" H x 3.5" W
Material:  6061-T6 aluminum / thermoset plastic  Finish:  Skydrol resistant enamel
Connector:  TNC  Temperature:  -67°F to +185°F
Vibration:  10 G's  Altitude:  55,000 ft

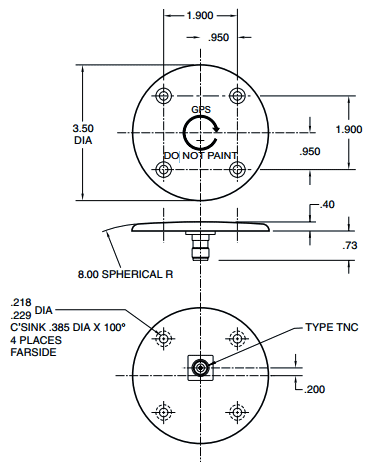

S67-1575-20 Diagram



Part NumberGPS Antenna Description:
S67-1575-20 see details above
S67-1575-39 Same as (-20) except preamplifier/filter assembly. Internal 26 dB gain amplifier requires +4 to +24 VDC which is provided through the coaxial connector. Height .57 inches
S67-1575-49  Same as (-39) except 40 dB gain preamplifier. Height .60 inches
S67-1575-59  Same as (-49) except 13 dB gain preamplifier



S67-1575-20
- GPS Antenna

NSN: 5985-01-451-7424

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
